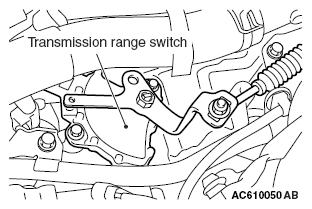

Transmission Range Switch Continuity Check
WARNING: This page is about a different variant/trim than selected.
CONTINUITY SPECIFICATION
| Item |
Terminal number |
Resistance value |
| P |
3 - 2, 7 - 10 |
Continuity exists (2 Ω or less). |
| R |
3 - 9 |
| N |
3 - 8, 7 - 10 |
| D |
3 - 5 |
| L <Vehicles without sport mode> |
3 - 1 |
