Special Tools

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOLS REFERENCE CHART

Tool Tool number and name Supersession Application

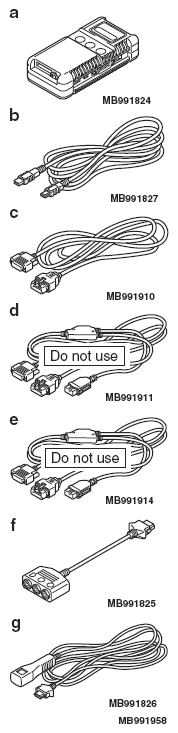

G06665771Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991958
  1. MB991824
  2. MB991827
  3. MB991910
  4. MB991911
  5. MB991914
  6. MB991825
  7. MB991826

M.U.T.-III sub assembly
  1. Vehicle communication interface (V.C.I.)
  2. M.U.T.-III USB cable
  3. M.U.T.-III main harness A (Vehicles with CAN communication system)
  4. M.U.T.-III main harness B (Vehicles without CAN communication system)
  5. M.U.T.-III main harness C (for Chrysler models only)
  6. M.U.T.-III measurement adapter
  7. M.U.T.-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III trigger harness is not necessary when pushing V.C.I. ENTER key.
CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
Checking diagnostic trouble codes
G06665772Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992006
Extra fine probe		 - Making voltage and resistance measurement during troubleshooting
G06665773Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MD998330 (Includes MD998331)
Oil pressure gauge (3.0 MPa, 427 psi)		 MD998330-01 Measurement of hydraulic pressure
G06665774Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992127
Joint		 -
G06665775Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB995062
Flushing tool		 MLR-6906-C or Equivalent Flushing cooler and tube
G06665776Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991928
Engine hanger
  1. MB991929 Joint (50) x2
  2. MB991930 Joint (90) x2
  3. MB991931 Joint (140) x2
  4. MB991932 Foot (standard) x4
  5. MB991933 Foot (short) x2

F: MB991934
Chain and hook assembly		 Tool not available When the engine hanger is used: Supporting the engine assembly during removal and installation of the transaxle assembly
G06665777Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991895
Engine hanger		 Tool not available
G06665778Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992201
Engine hanger plate		 -
