>>C<< Transaxle Control Cable (Transaxle Side) Installation

WARNING: This page is about a different variant/trim than selected.
  1. Move the selector lever to the "N" range.
  2. Move the manual control lever to Neutral position.
  3. Align the hole at the end of the manual control lever and the hole in the inhibitor switch body flange (section A - A).
    NOTE: Insert a f5 mm (0.2 inch) bar into the aligned holes in the transmission range switch body flange and on the tip of the manual control lever to position the transmission range switch body.

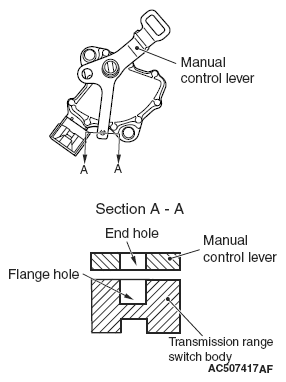

    Fig 1: Identifying Aligning Hole At End Of Manual Control Lever And Transmission Range Switch Body Flange
    G06665820Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. Use the adjusting nut to tighten the transmission control cable to the specified torque.

    Tightening torque: 9.5 ± 3.5 N.m (84 ± 31 in-lb)

  5. Make sure that the transmission-side ranges that are corresponding to the transmission range operate and function without fail.

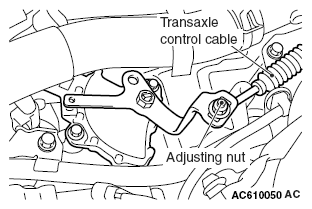

    Fig 2: Identifying Transaxle Control Cable And Adjusting Nut
    G06665821Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
