<<D>> Engine Assembly Supporting

WARNING: This page is about a different variant/trim than selected.

Remove the vacuum pipe assembly (Refer to WATER HOSE AND WATER PIPE ), and install the engine hanger plate (special tool: MB992201) to the position as shown in the illustration.
<When engine hanger (Special tool: MB991928) is used>
1. Assemble the engine hanger (Special tool: MB991928). (Set the components below to the base hanger.)
  - Slide bracket (HI)
  - Foot x 4 (standard) (MB991932)
  - Joint x 2 (90) (MB991930)

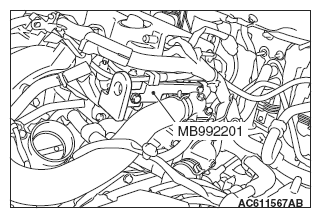

    Fig 1: Installing Engine Hanger Plate (MB992201) To Engine Assembly
    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Set the feet of the special tool as shown in the illustration.
  NOTE: Adjust the engine hanger balance by sliding the slide bracket (HI).

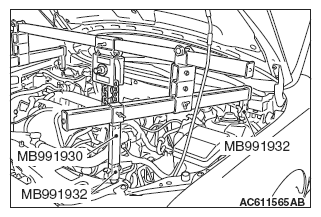

  Fig 2: Identifying Special Tool (MB992201), (MB991932) And (MB991930)
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Remove the garage jack and then remove the transaxle assembly upper part coupling bolts that have been loosened previously.

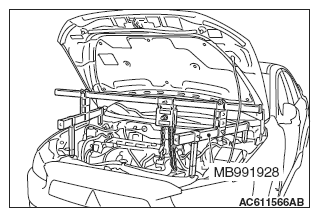

  Fig 3: Identifying Special Tool (MB991928) On Transaxle Assembly
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
<When using engine mechanical hanger (Special tool: MB991895)>
1. Set the foot of the engine mechanical hanger (Special tool: MB991895) as shown in the illustration.
  NOTE: Slide the front foot of the engine mechanical hanger (Special tool: MB991895) to balance the engine hanger.

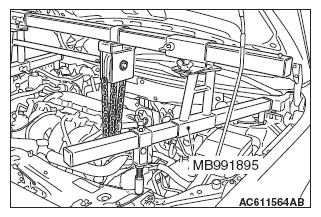

  Fig 4: Installing Engine Mechanical Hanger (Special Tool MB991895)
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Remove the garage jack and then remove the transaxle assembly upper part coupling bolts that have been loosened previously.

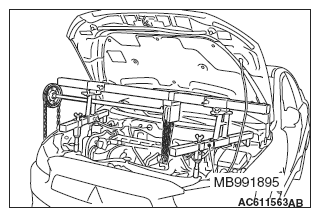

  Fig 5: Removing Transaxle Assembly Using Special Tool MB991895
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
