>>A<< Key Interlock Cable Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: Leave the ignition switch in the "LOCK" (OFF) position until the key interlock cable installation is completed.

Move the selector lever to the "P" position and turn the ignition switch to the "LOCK" (OFF) position.
Install the tip of the key interlock cable to the lock cam of the selector lever assembly, taking care not to twist the inner cable.
Install the adjuster case with its lock guide pulled up (unlocked).
Securely push down the lock guide to lock it.
NOTE: The lock position of the key interlock cable is automatically adjusted by a spring.

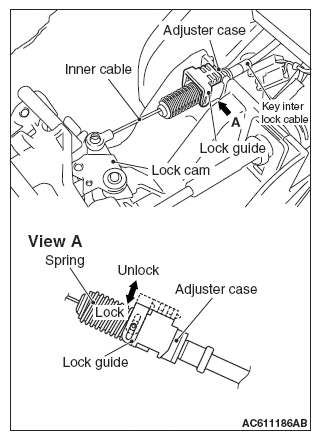

Fig 1: Identifying Inner Cable, Adjuster Case, Key Interlock Cable, Lock Guide And Lock Cam
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
