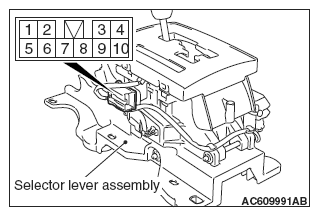

Shift Switch Assembly Continuity Check
WARNING: This page is about a different variant/trim than selected.
CONTINUITY SPECIFICATION
| Shift switch assembly | Transmission range | Terminal number | Continuity |
|---|---|---|---|
| Select switch | Sport mode | 7 - 8 | Continuity |
| Other than above | 7 - 8 | No continuity | |
| Shift switch (UP) | Upshift and hold | 7 - 10 | Continuity |
| Other than above | 7 - 10 | No continuity | |
| Shift switch (DOWN) | Downshift and hold | 7 - 9 | Continuity |
| Other than above | 7 - 9 | No continuity |
