Operation pattern of items 01 to 08

WARNING: This page is about a different variant/trim than selected.

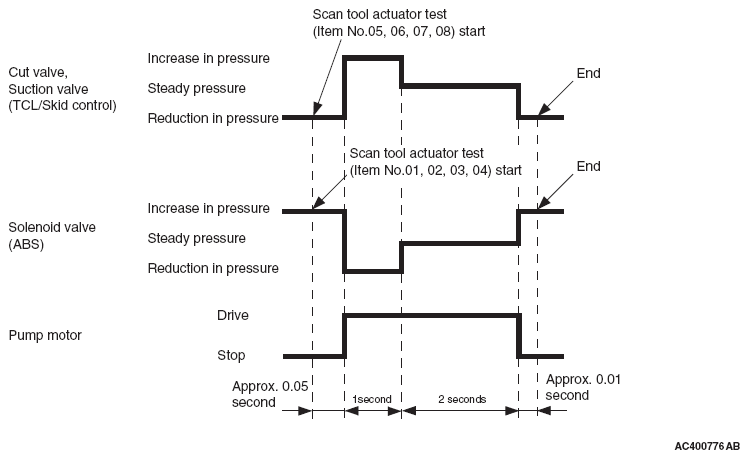

Fig 1: Operation Pattern Of Actuator Test Items 01 To 08
G06665942Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
