Schematic Diagram
WARNING:
This page is about a different variant/trim than selected.

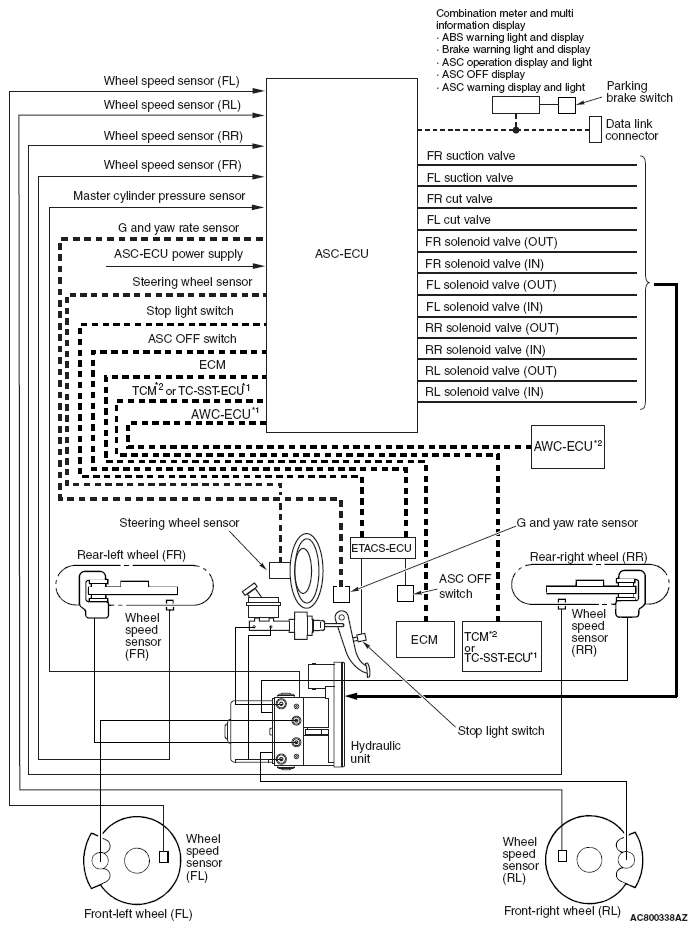

Fig 1: Active Stability Control System (ASC) Schematic Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE:
Dashed lines indicate the CAN bus line.
*1
: AWD
*2
: CVT
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
