Disassembly And Assembly <16-Inch Front Disc Brake (Except RALLIART)>: Notes

WARNING: This page is about a different variant/trim than selected.

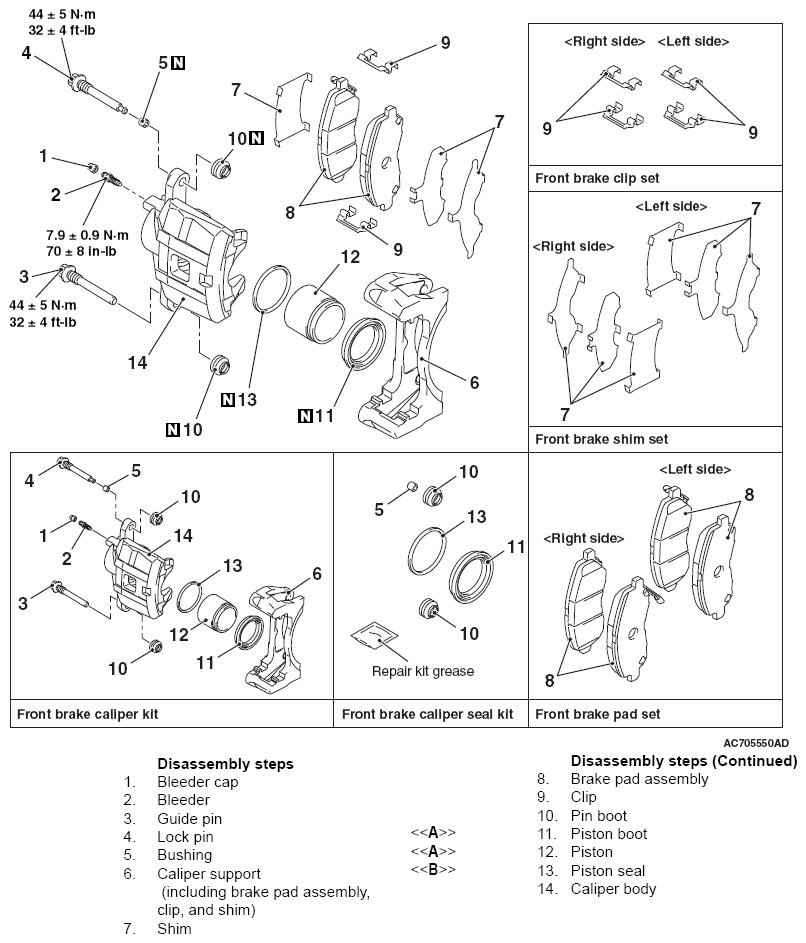

Fig 1: Exploded View Of Front Disc Brake Assembly (16-Inch Front Disc Brake (Except Ralliart)) With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
