Section 31 (Basic Brake System - Lancer)
>>
Rear Disc Brake Assembly
>>
Removal And Installation <RALLIART>
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Removal And Installation <RALLIART>
WARNING:
This page is about a different variant/trim than selected.

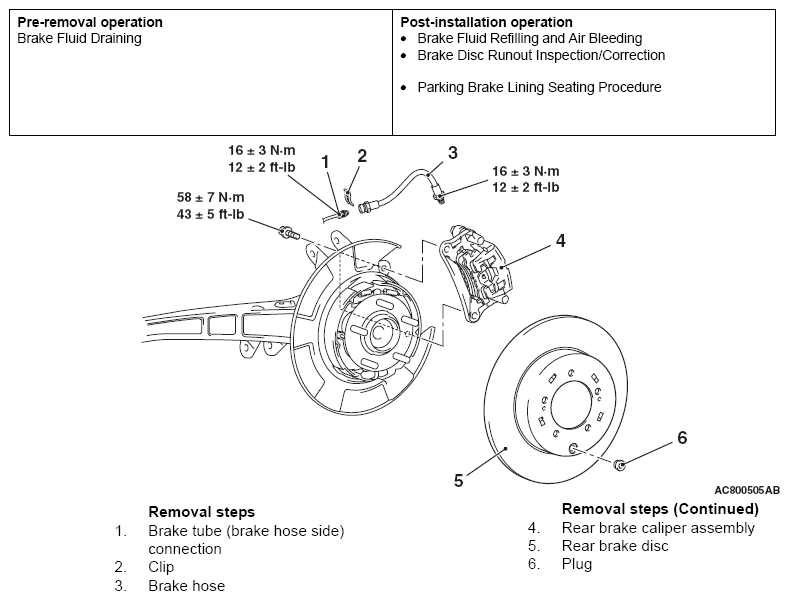

Fig 1: Rear Disc Brake Assembly Replacement Components - Ralliart With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
