DTC U0231: Lighting control sensor LIN timeout <Vehicles with auto light function>: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before replacing the ECU, ensure that the communication circuit is normal.

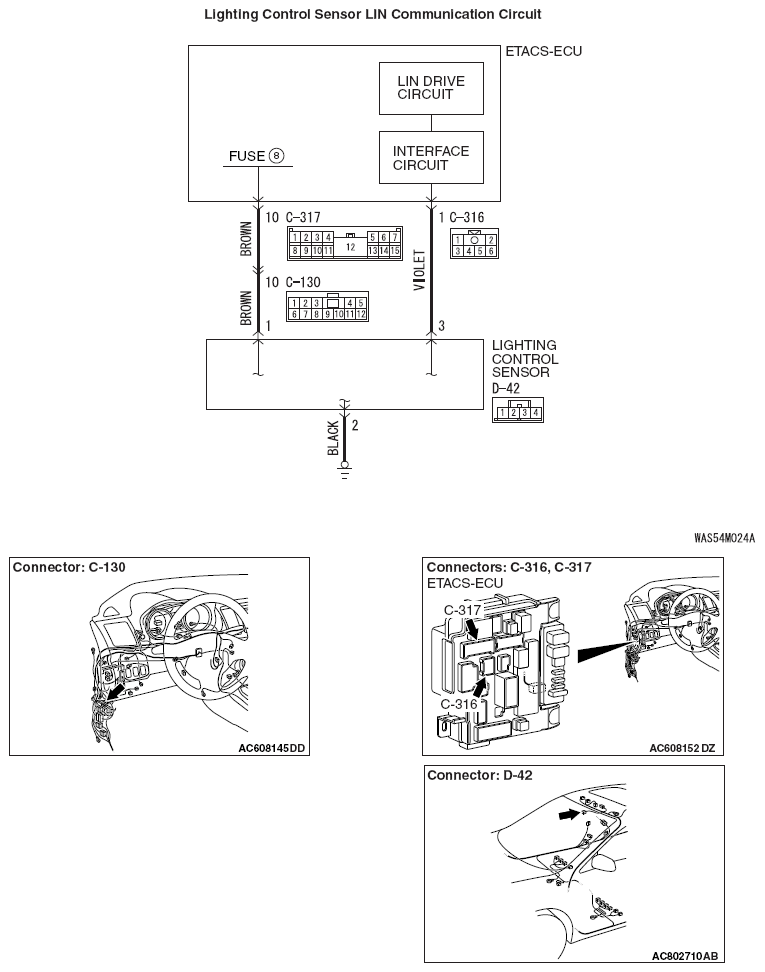

Fig 1: Lighting Control Sensor LIN Communication Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
