DTC U1515: No-Bus activity error (LIN): Notes

WARNING: This page is about a different variant/trim than selected.

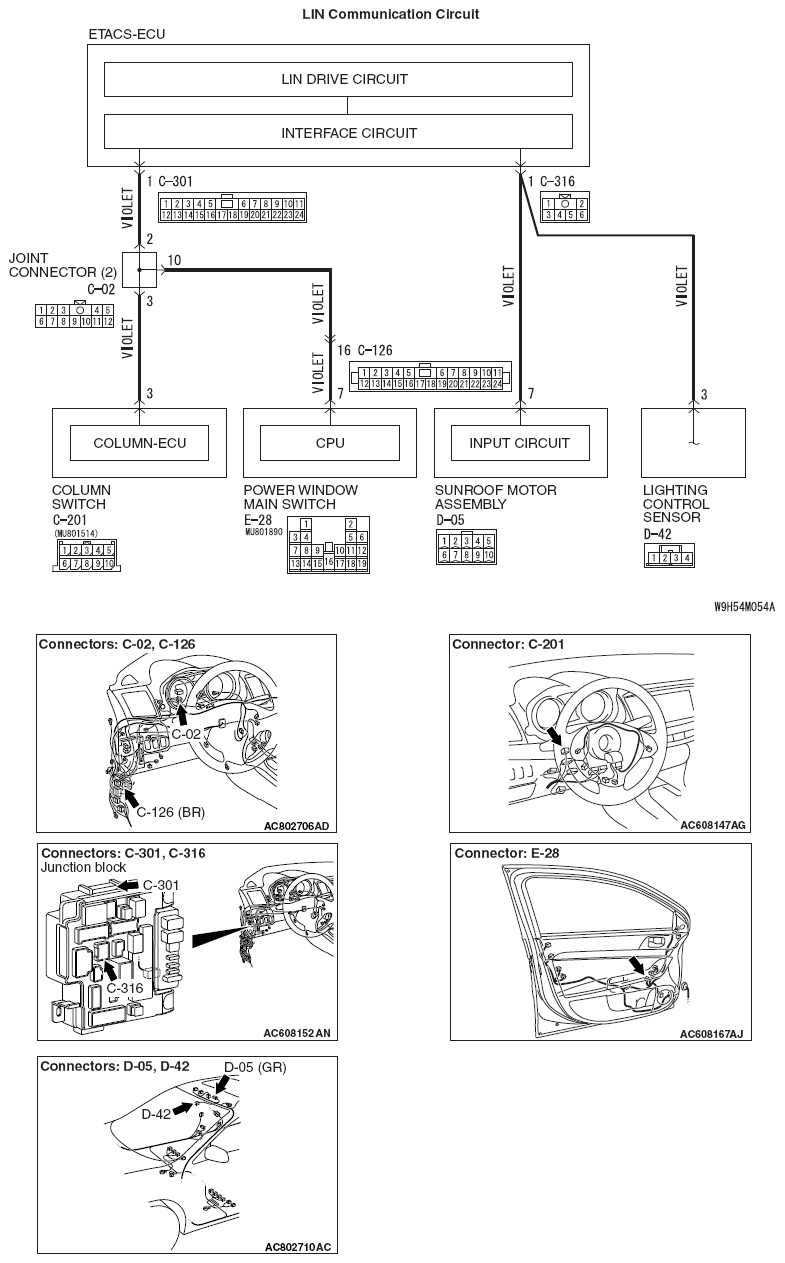

Fig 1: LIN Communication Circuit Diagram
G06673734Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
