Steering Wheel Audio Remote Control Switch Check
WARNING: This page is about a different variant/trim than selected.

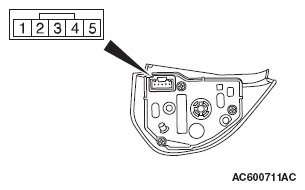

Use an ohmmeter to measure the resistance value between the terminal.
RESISTANCE SPECIFICATION

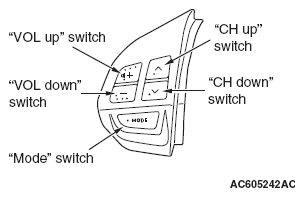

| Switch Position | Tester Connection | Measurement Value |
|---|---|---|
| No push | 2 - 3 | Approximately 3.1 kΩ |
| 2 - 4 | Approximately 71 kΩ | |
| "Mode" switch | Approximately 270 Ω | |
| "CH up" switch | Approximately 740 Ω | |
| "CH down" switch | Approximately 1.3 kΩ | |
| "VOL up" switch | Approximately 2.1 kΩ | |
| "VOL down" switch | Approximately 3.1 kΩ |
