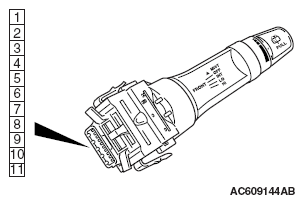

Windshield Washer Switch Check
WARNING: This page is about a different variant/trim than selected.
TESTER CONNECTION AND SPECIFIED CONDITION CHART
| SWITCH POSITION |
TESTER CONNECTION |
SPECIFIED CONDITION |
| OFF |
6 - 7 |
Open circuit |
| Windshield washer switch ON |
6 - 7 |
Continuity (Less than 2 ohms |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
