Windshield Wiper Switch Check

WARNING: This page is about a different variant/trim than selected.

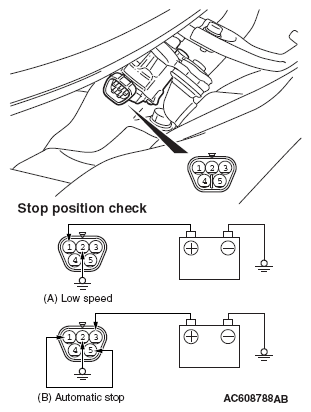

Fig 1: Connecting Vehicle Battery To Windshield Wiper Motor Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Check continuity between the switch terminals.

TESTER CONNECTION AND SPECIFIED CONDITION CHART

Switch position	Tester connection	Specified condition
OFF	6 - 11, 6 - 10, 6 - 9, 6 - 8	Open circuit
Windshield mist wiper switch	6 - 11	Continuity (Less than 2 ohms)
Windshield intermittent wiper switch	6 - 10
Windshield low-speed wiper switch	6 - 9
Windshield high-speed wiper switch	6 - 8

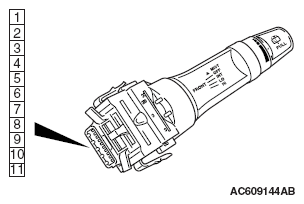

Fig 2: Identifying Windshield Wiper Switch Connector Terminal

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
