>>B<< Wiper Link Assembly/Wiper Motor Link Plate/Windshield Wiper Motor Installation

WARNING: This page is about a different variant/trim than selected.

Confirm that the wiper motor has set to automatic stop position (Refer to WINDSHIELD WIPER MOTOR CHECK ).

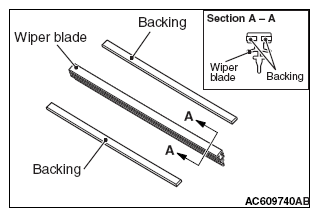

Fig 1: Identifying Wiper Blade With Backing
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: Always replace the wiper motor link plate with new one.
Set the wiper motor link plate onto the wiper motor shaft; aligning the triangle mark on the plate to the center line (of 3 lines) on the wiper link assembly as shown in the illustration.
Tighten the attaching nut of wiper motor link plate and wiper motor shaft. Use an appropriate tool to counter-hold the plate to prevent it from turning.
Apply grease to the inside of link rod joint (as required) and connect the link rod to wiper motor link plate.
Specified grease: Multipurpose grease SAE J310, NLGI No. 2 or equivalent

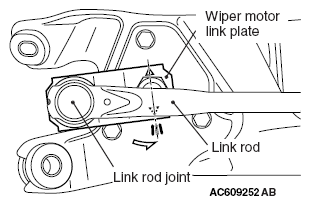

Fig 2: Setting Wiper Motor Link Plate Onto Wiper Motor Shaft
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
