>>C<< Wiper Arm And Blade Assembly Installation

WARNING: This page is about a different variant/trim than selected.

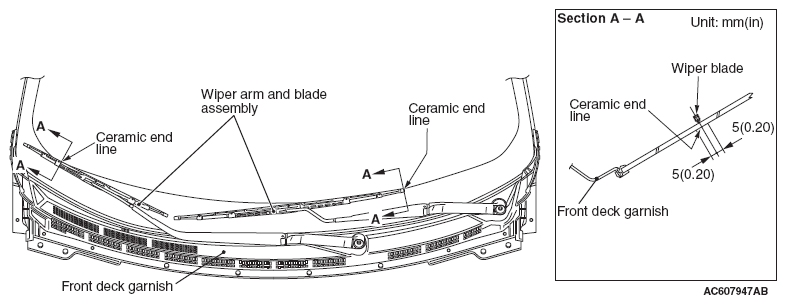

Fig 1: Setting Wiper Arm And Blade Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Set the wiper arm and blade assembly at the specified positions.

(A): Ceramic end line ± 5.0 mm(0.20 in)
