<<A>> Wiper Link Assembly Removal

WARNING: This page is about a different variant/trim than selected.

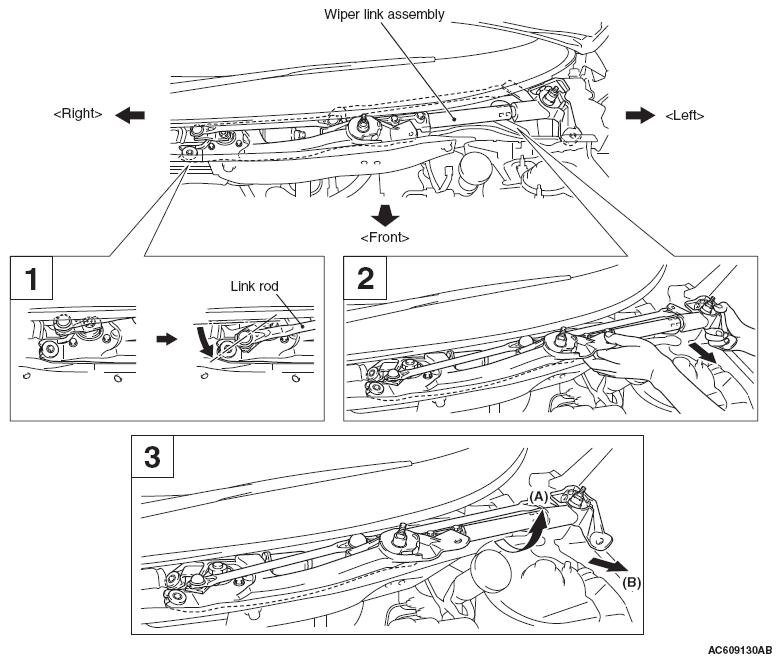

Fig 1: Identifying Wiper Link Assembly Components
G06673231Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  1. Manually turn the link rod at the right of the wiper link assembly forward to the position indicated in the figure.
    CAUTION: Another mechanic fully pushes up the hood so that the left side of link assembly is pulled out easily.
  2. Pull out the attachment section of the left side of link assembly forward.
    CAUTION: When pulling out the link assembly forward, be careful not to make a contact with the windshield glass.
  3. While turning the link assembly upward (A), pull out the entire link assembly diagonally forward left (B).
