Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

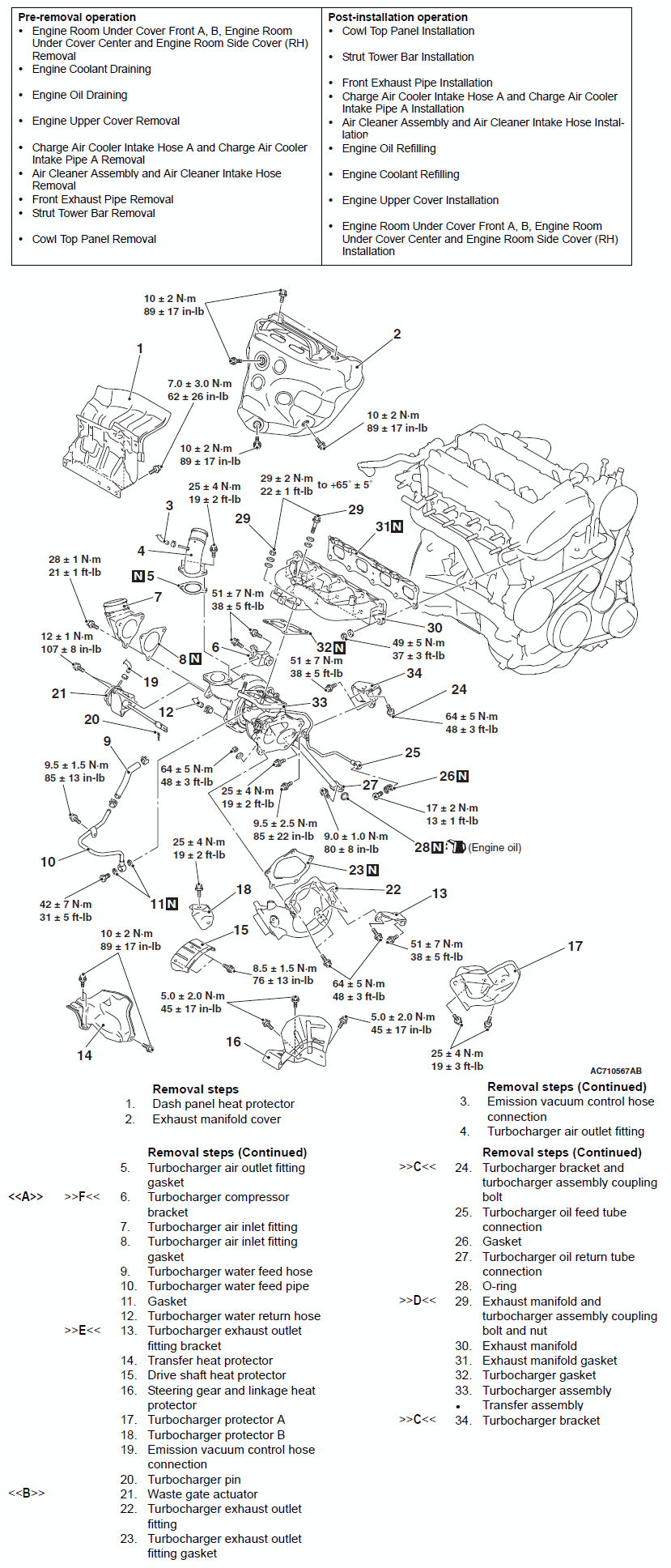

Fig 1: Exhaust Manifold And Turbocharger Replacement Components With Torque Specifications
G06675183Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

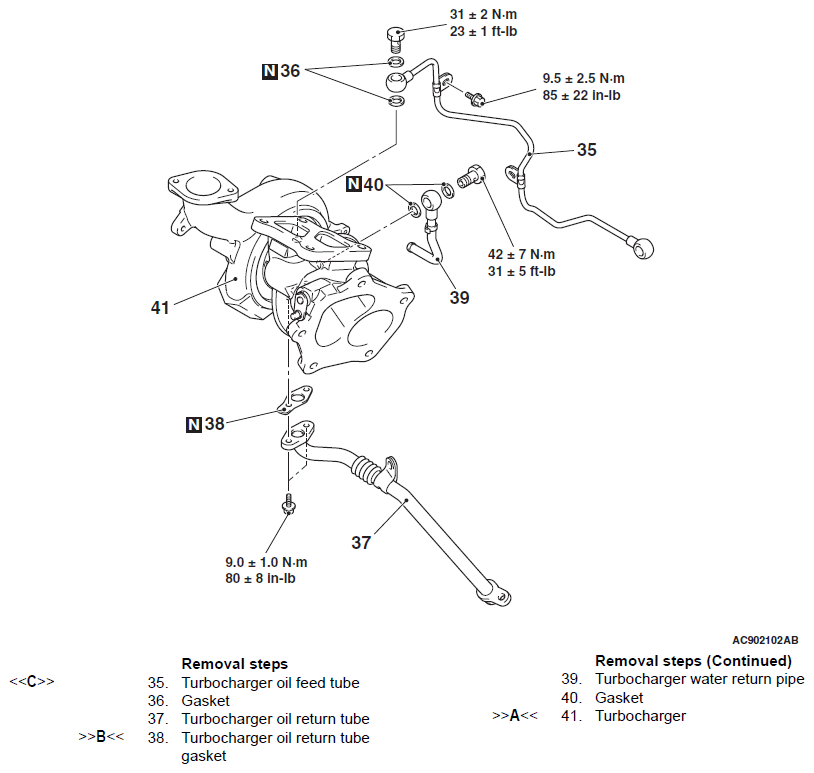

Fig 2: Turbocharger, Turbocharger Oil Return Tube And Gasket With Torque Specifications
G06675184Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
