Brake Pad Check

WARNING: This page is about a different variant/trim than selected.

CAUTION: If there is a significant difference in the thicknesses of the pads on the left and right sides, check moving parts (Refer to BRAKE DISK THICKNESS CHECK ).

Visually check the thickness of brake pad from the inspection hole of the caliper body.
Standard value:

9.85 mm (0.39 inch) <Front>

9.0 mm (0.35 inch) <Rear>

Limit: 2.0 mm (0.08 inch)
When the thickness is lower than the limit value, replace both brake pads (right and left) as a set (Refer to BRAKE PAD CHECK ).

Fig 1: Checking Thickness Of Brake Pad From Inspection Hole Of Caliper Body - Front
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

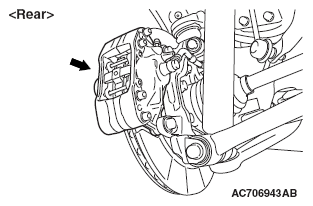

Fig 2: Checking Thickness Of Brake Pad From Inspection Hole Of Caliper Body - Rear
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
