Lubrication Points

WARNING: This page is about a different variant/trim than selected.

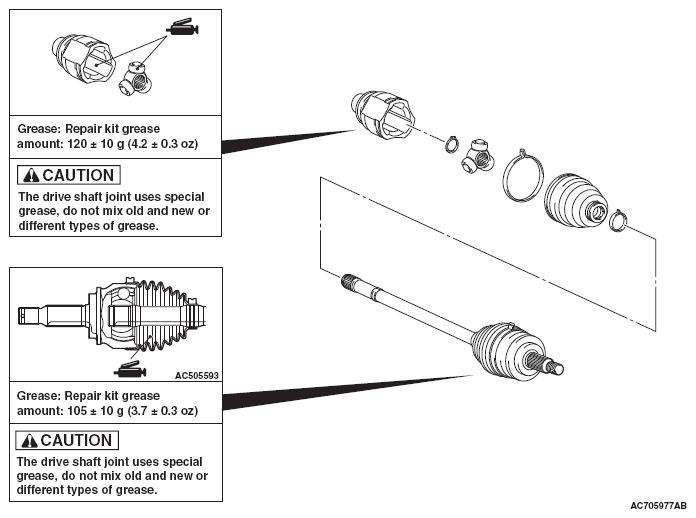

Fig 1: Identifying Lubrication Points Driveshaft Assembly
G05904326Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
