Removal And Installation

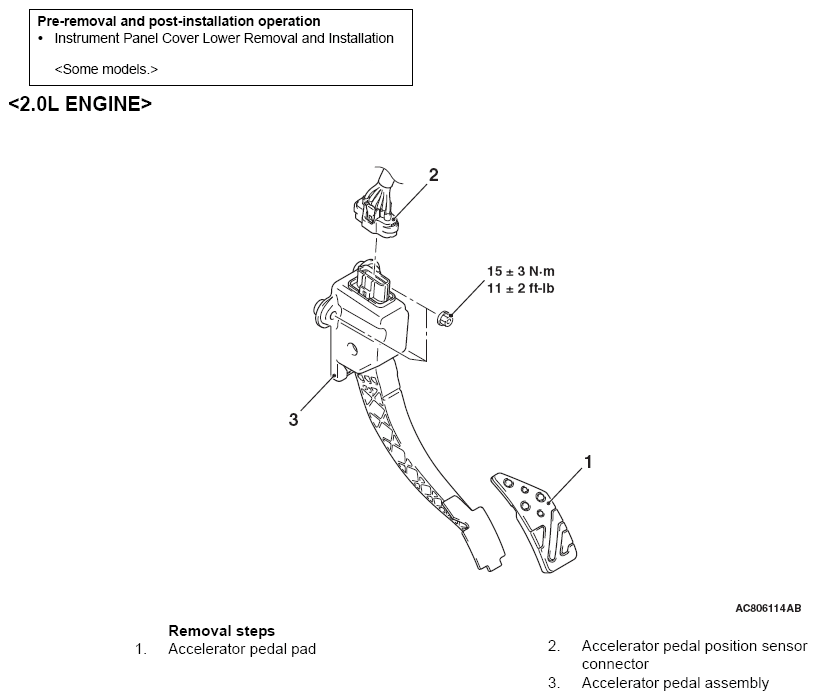

Fig 1: Accelerator Pedal Assembly Replacement Components With Torque Specifications - 2.0L Engine
G06471111Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

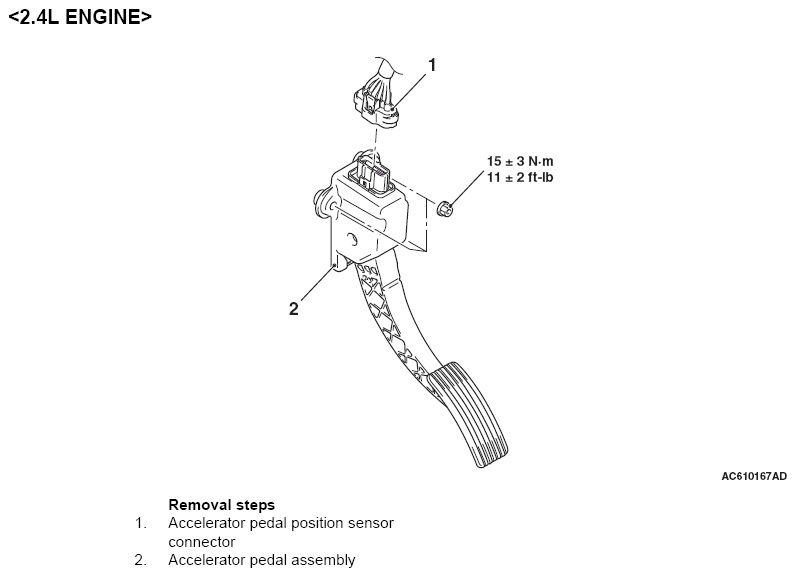

Fig 2: Accelerator Pedal Assembly Replacement Components With Torque Specifications - 2.4L Engine
G06471112Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
