Keyless Operation System (KOS) Keyless Operation Key

KEYLESS OPERATION SYSTEM (KOS)

KEYLESS OPERATION KEY

DISASSEMBLY AND ASSEMBLY

WARNING: Coin-type lithium battery may contain perchlorate materials. Special handling may apply.

Post-installation Operation:

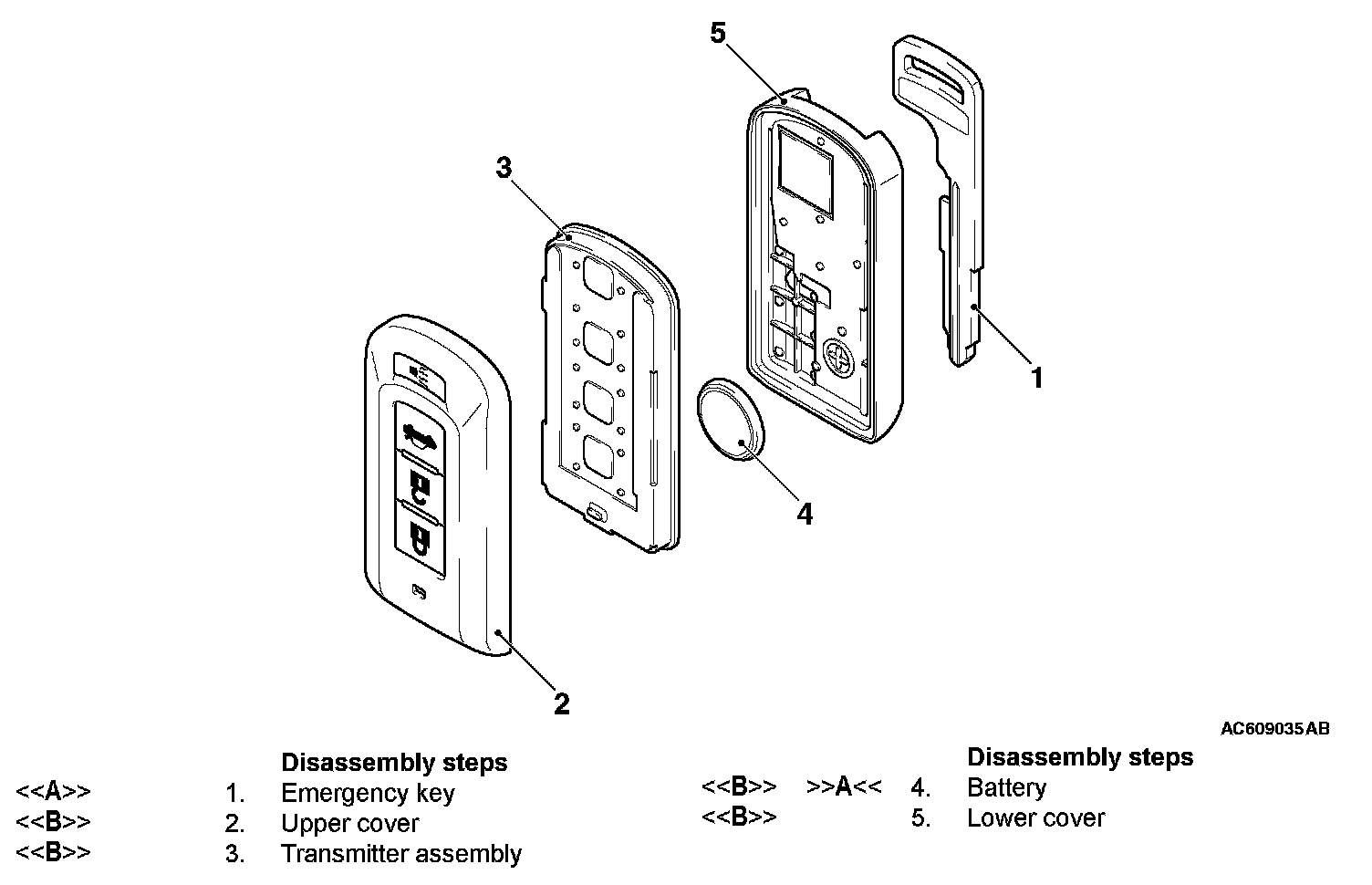

Disassembly Steps 1-5:

DISASSEMBLY SERVICE POINTS

[[A]] EMERGENCY KEY REMOVAL










With the lever being pressed in the arrow direction of the illustration, pull out the emergency key from the keyless operation key and remove it.

[[B]] UPPER COVER/TRANSMITTER ASSEMBLY/BATTERY/LOWER COVER REMOVAL

CAUTION: Do not allow water or dust to enter the inside of the transmitter assembly when it is open. Also, do not touch the precision electronic device.

Place a flat-tipped screwdriver wrapped with protective tape as shown in the figure, and lever the keyless operation key to remove.

ASSEMBLY SERVICE POINT

]]A[[ BATTERY INSTALLATION

CAUTION: Do not allow water or dust to enter the inside of the transmitter assembly when it is open. Also, do not touch the precision electronic device.







Install a new battery with the positive side facing toward the lower cover.

Replacement battery: Coin-type lithium battery CR2032
