Data List Reference Table

KEYLESS OPERATION SYSTEM (KOS)

DATA LIST REFERENCE TABLE

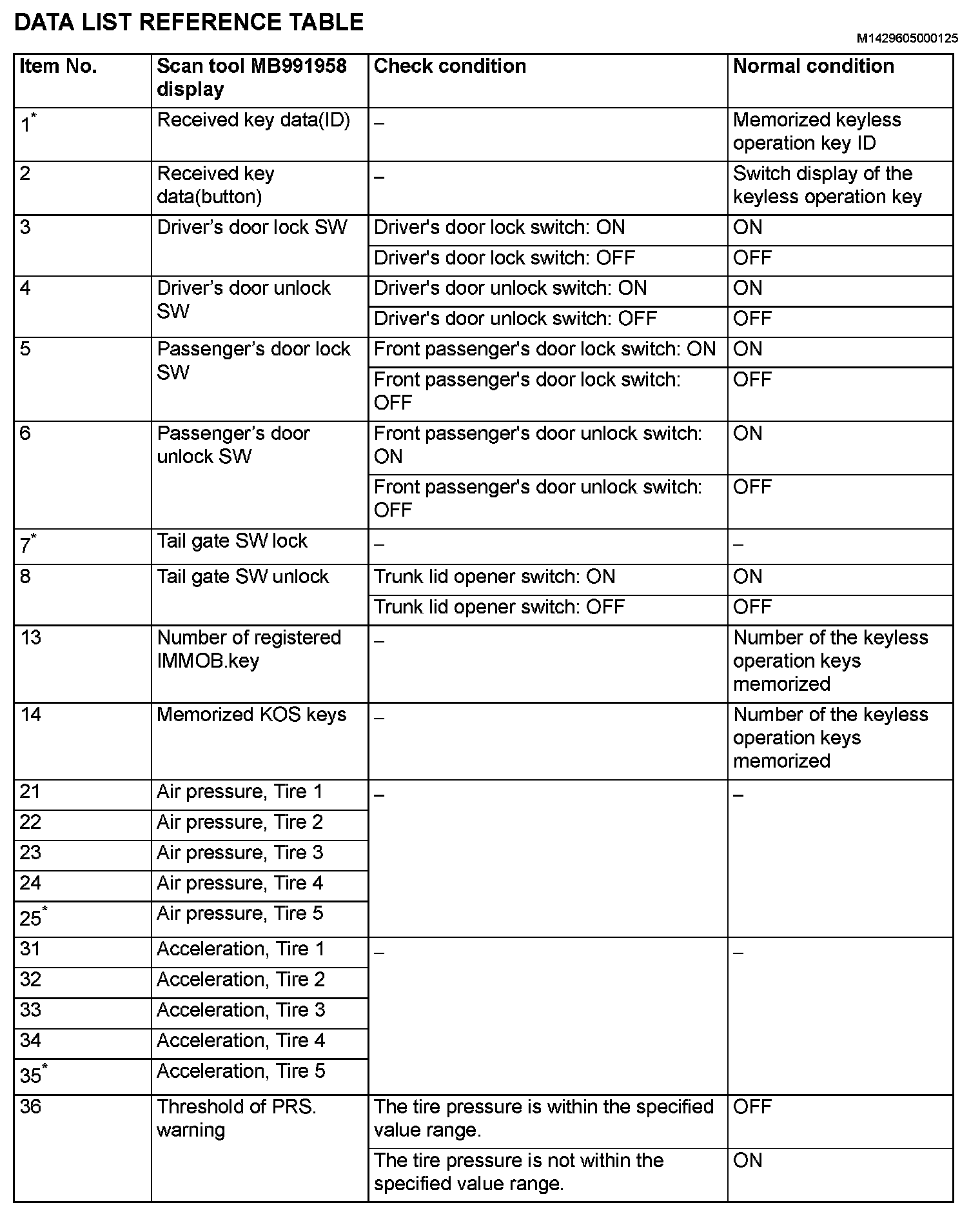

Data List Reference Table (Part 1):

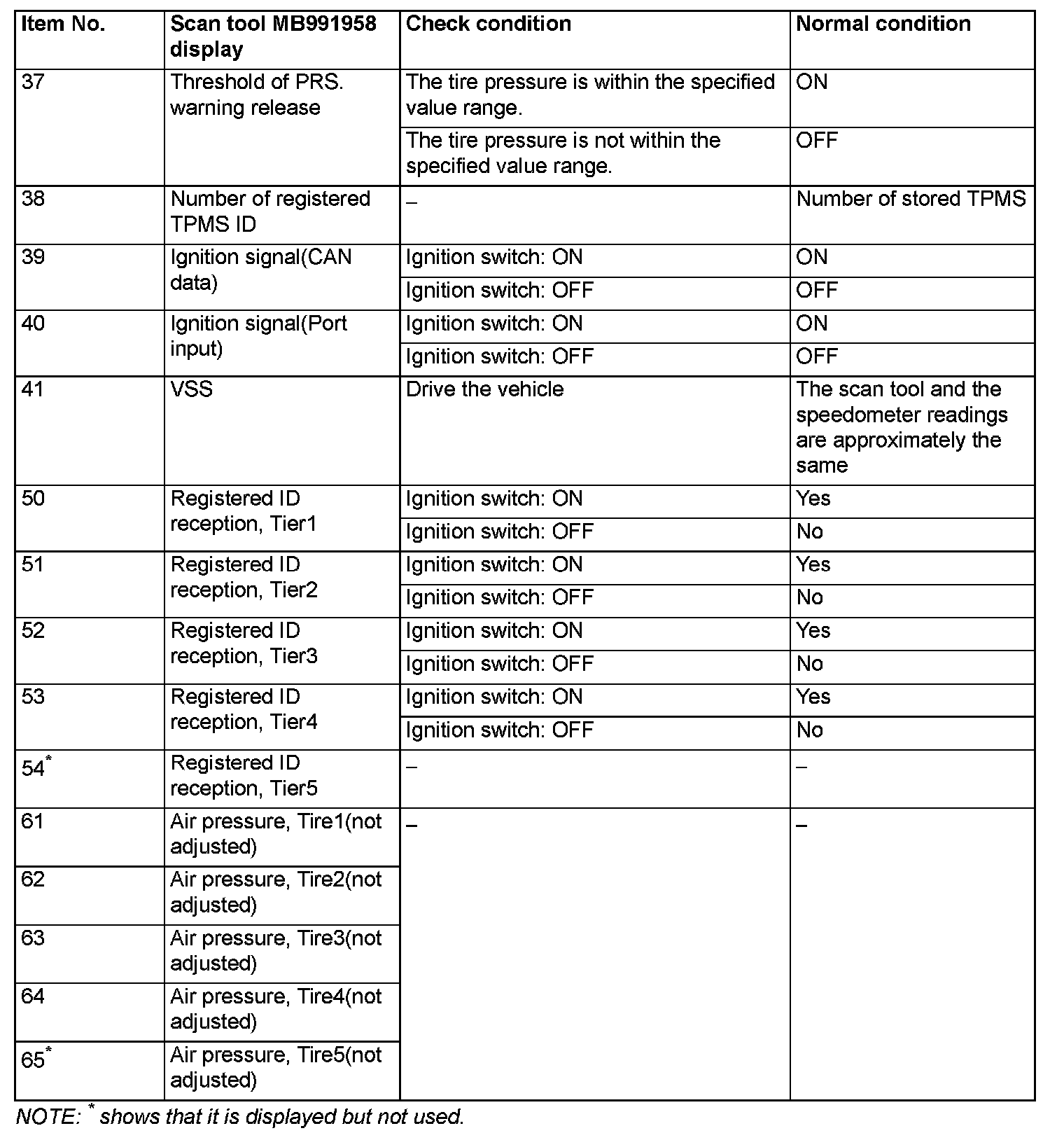

Data List Reference Table (Part 2):
