Transaxle
TRANSAXLE
DISASSEMBLY AND ASSEMBLY

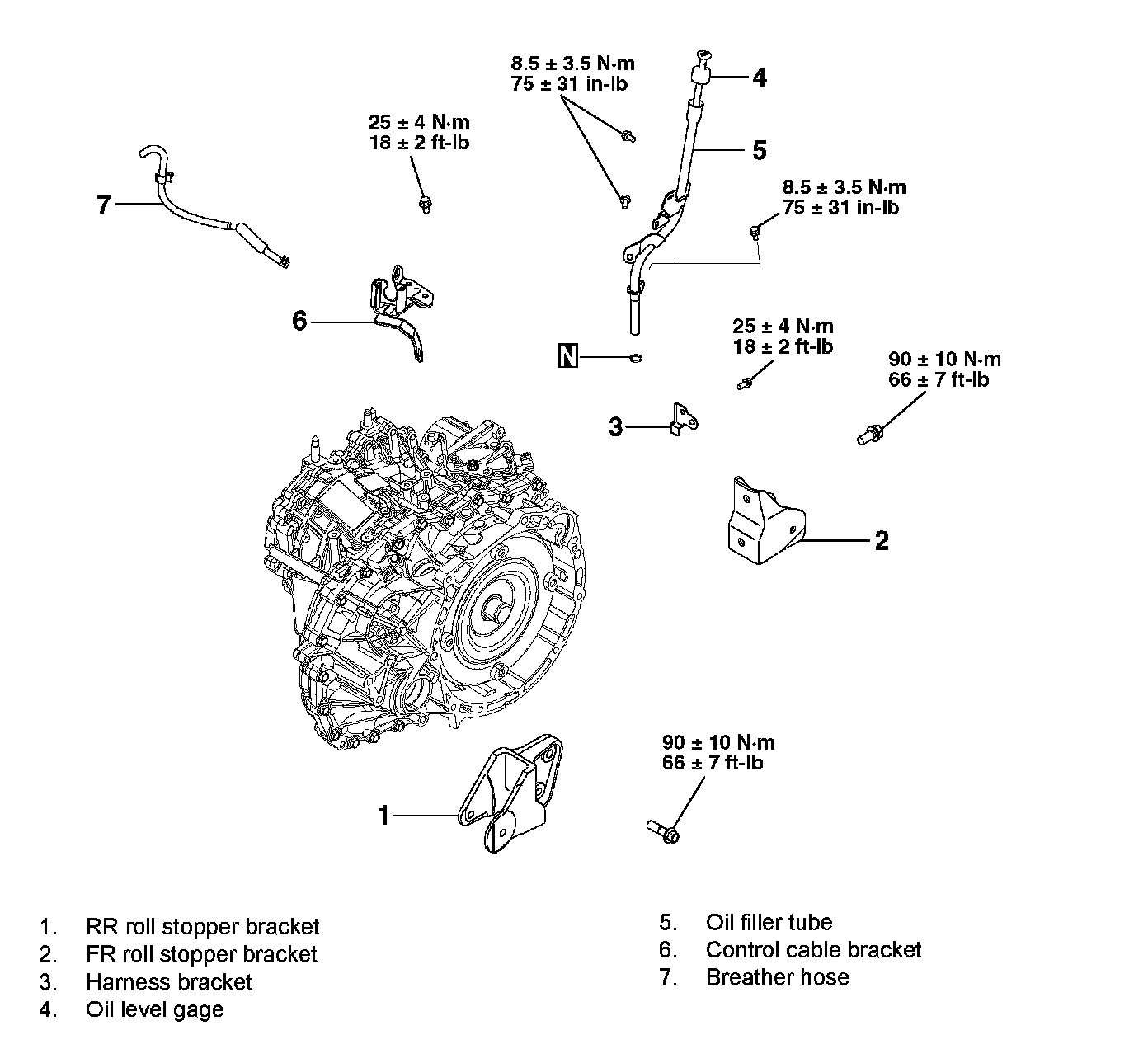

Disassembly Steps 1-7:

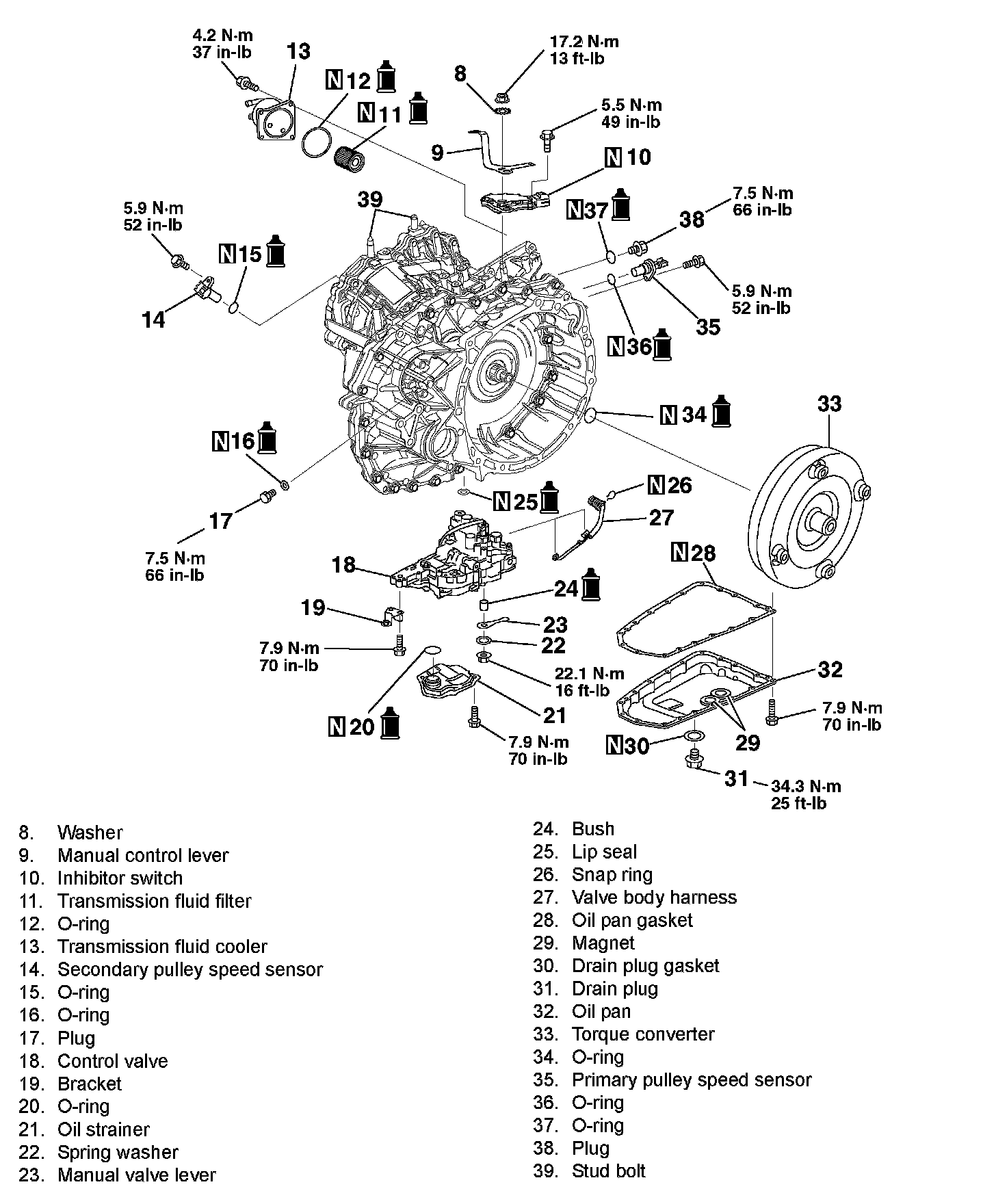

Disassembly Steps 8-39:

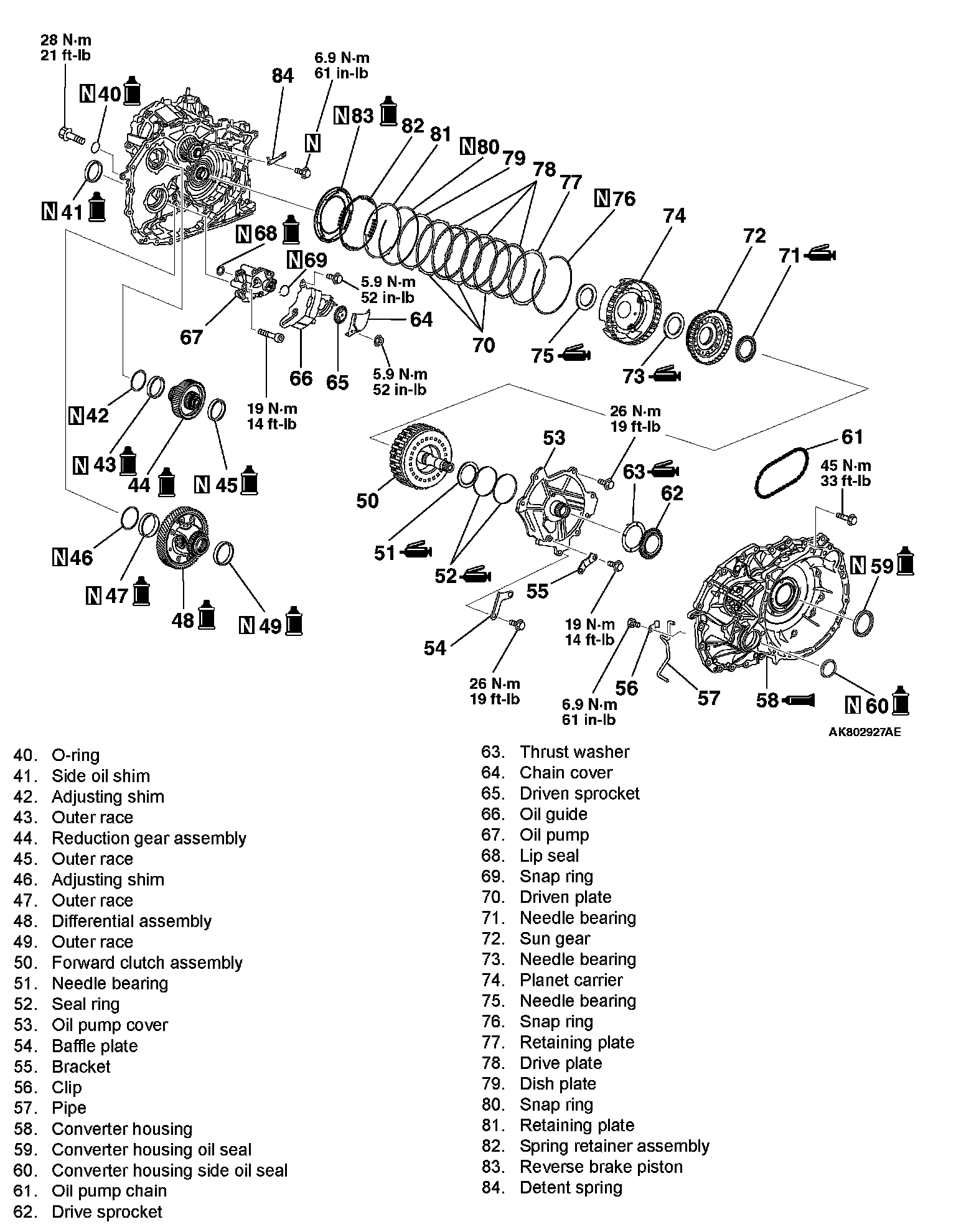

Disassembly Steps 40-84:
