Data List Reference Table

ETACS

DATA LIST REFERENCE TABLE

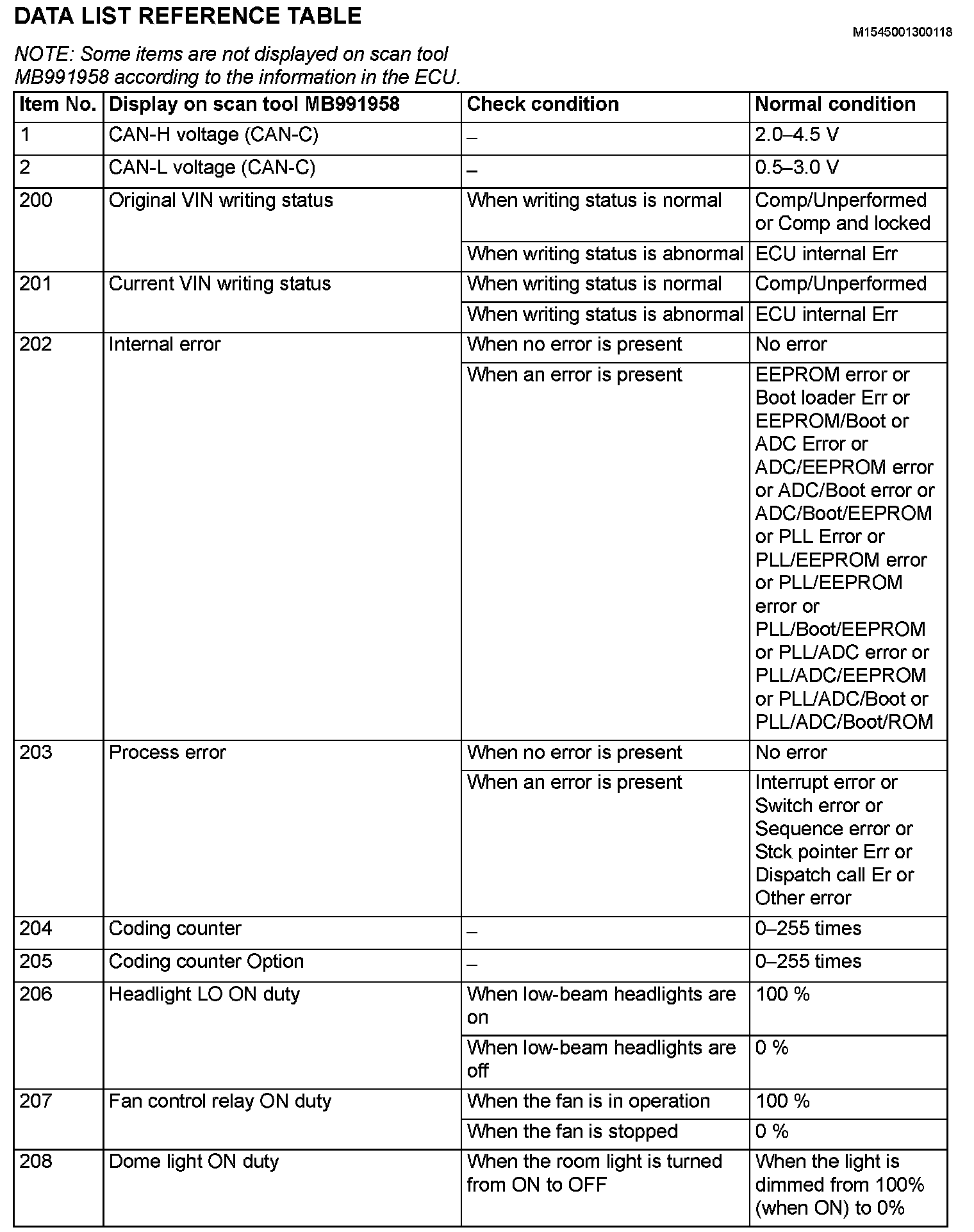

Data List Reference Table (Part 1):

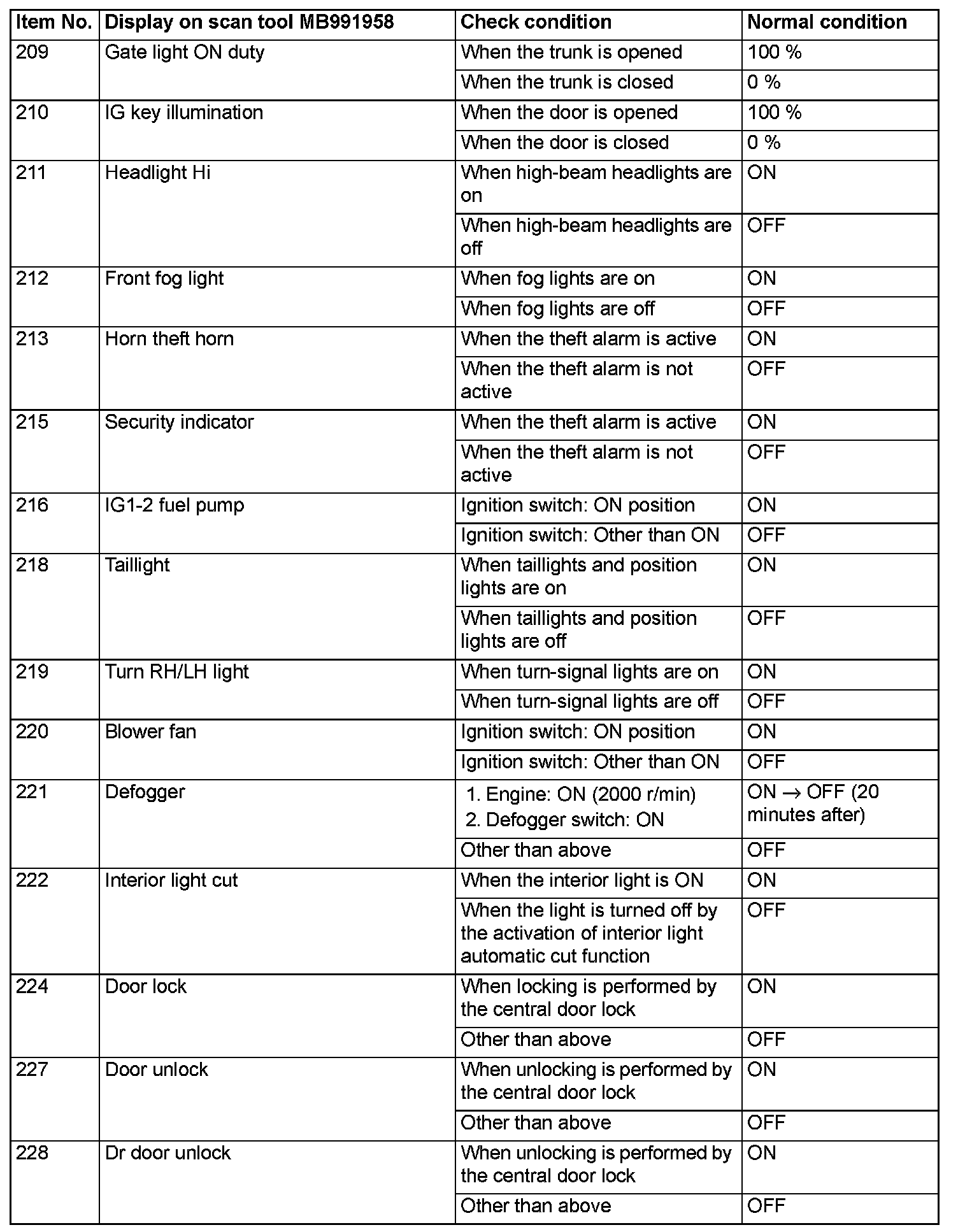

Data List Reference Table (Part 2):

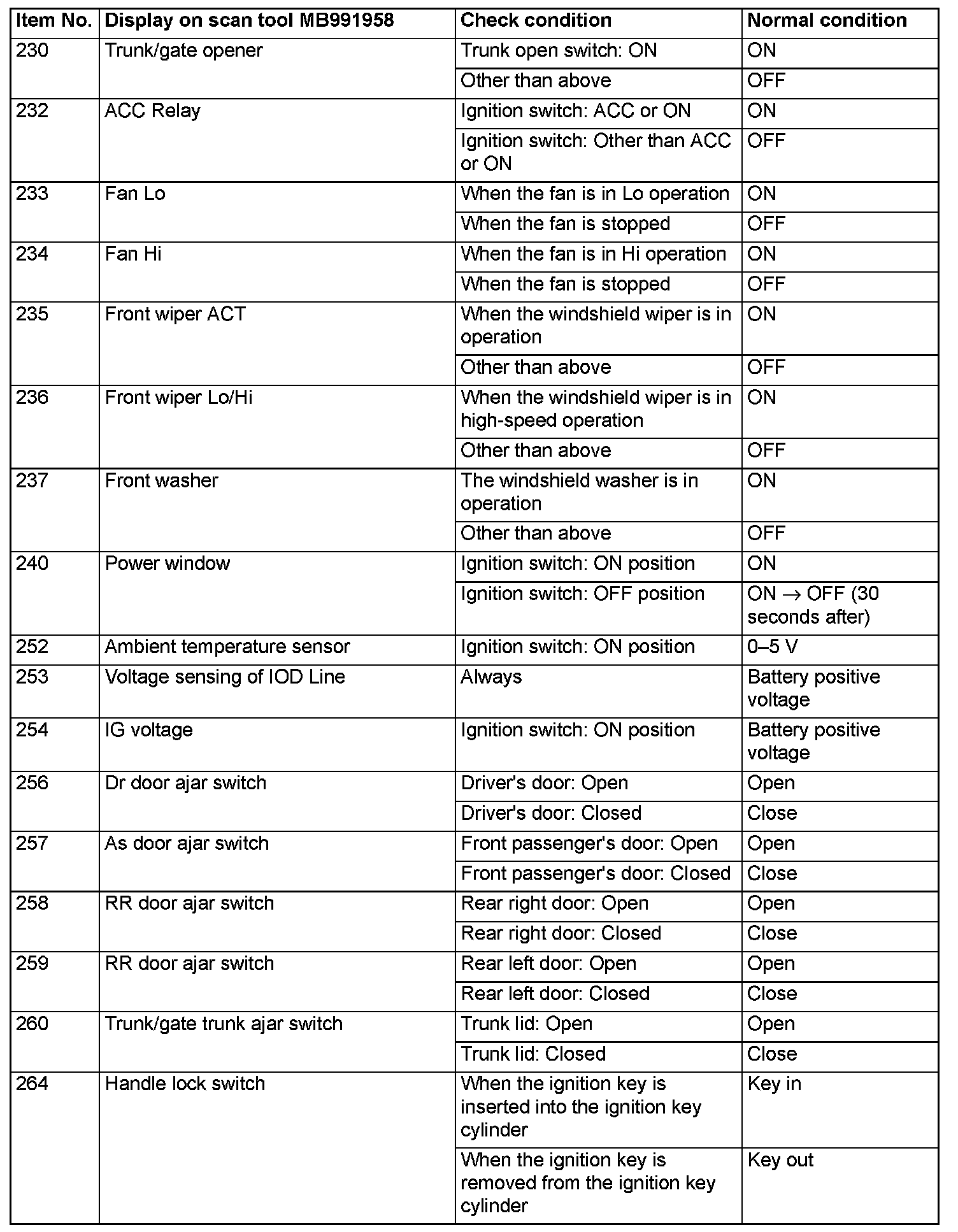

Data List Reference Table (Part 3):

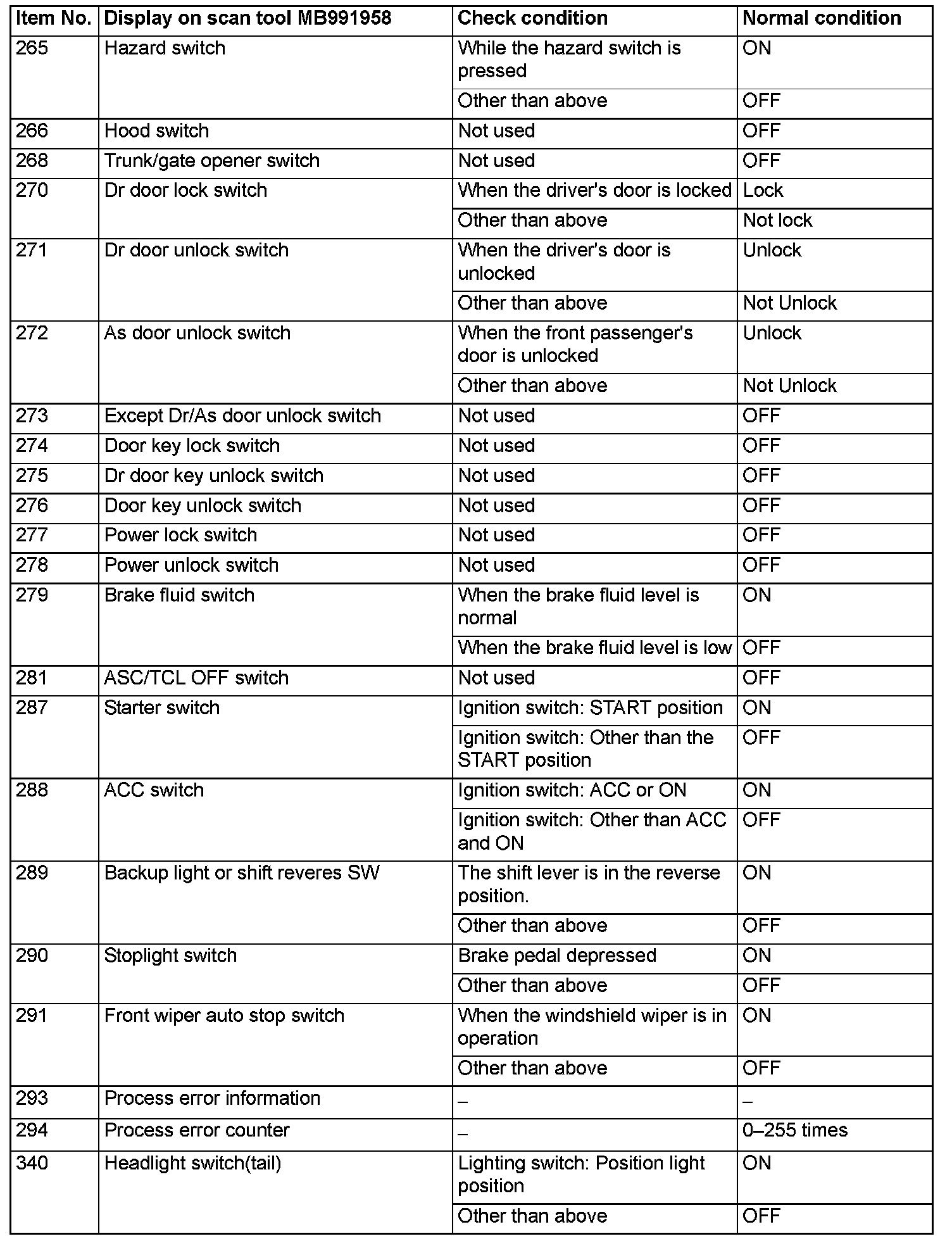

Data List Reference Table (Part 4):

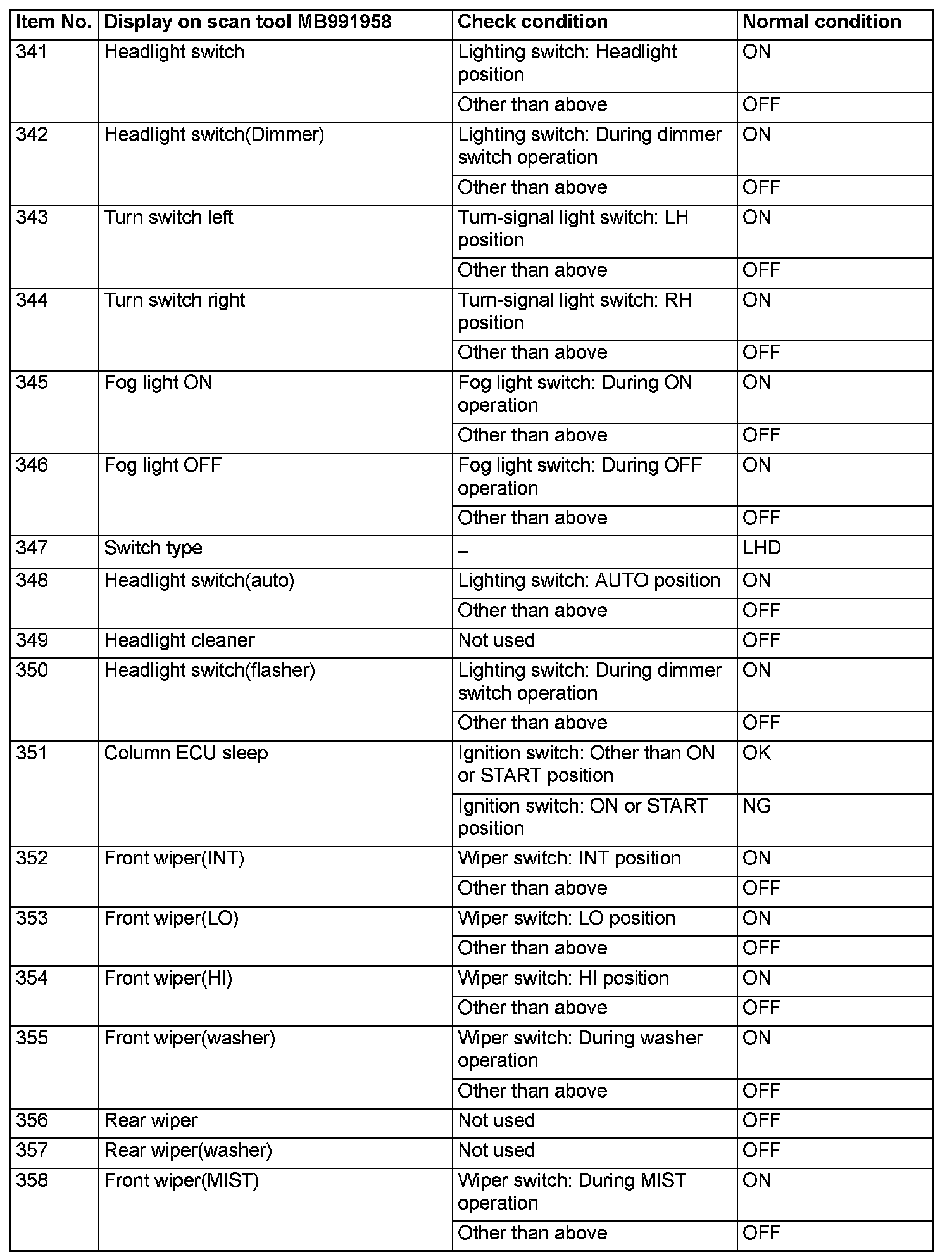

Data List Reference Table (Part 5):




Data List Reference Table (Part 6):
