Intake Manifold Plenum < 3.0L Engine >
>>
Removal And Installation
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Removal And Installation: Notes

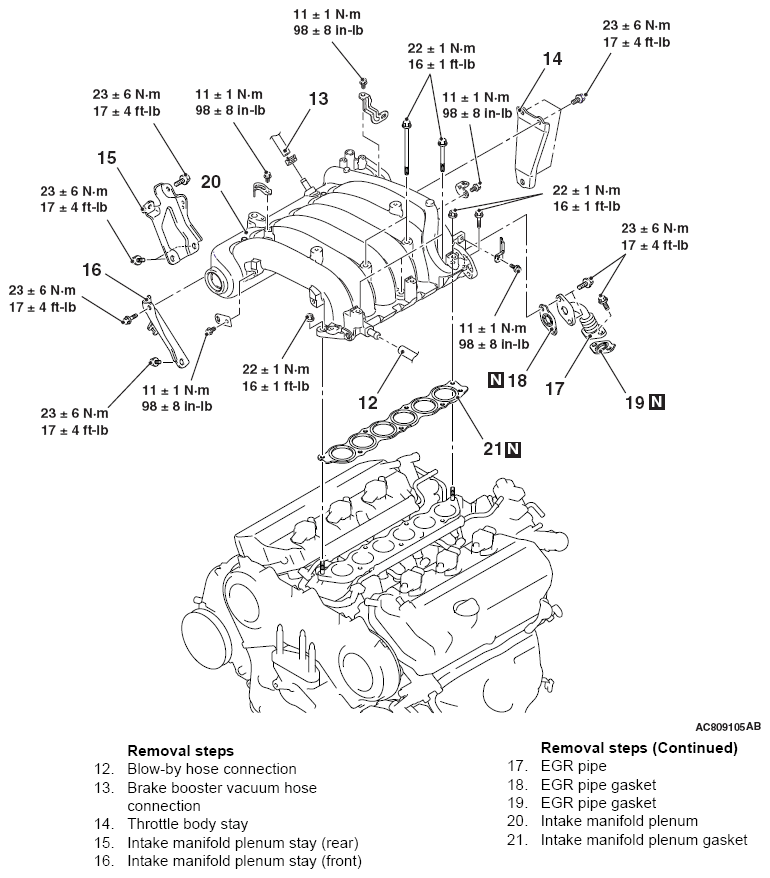

Fig 1: Intake Manifold Plenum Replacement Components With Torque Specifications - 3.0L Engine (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

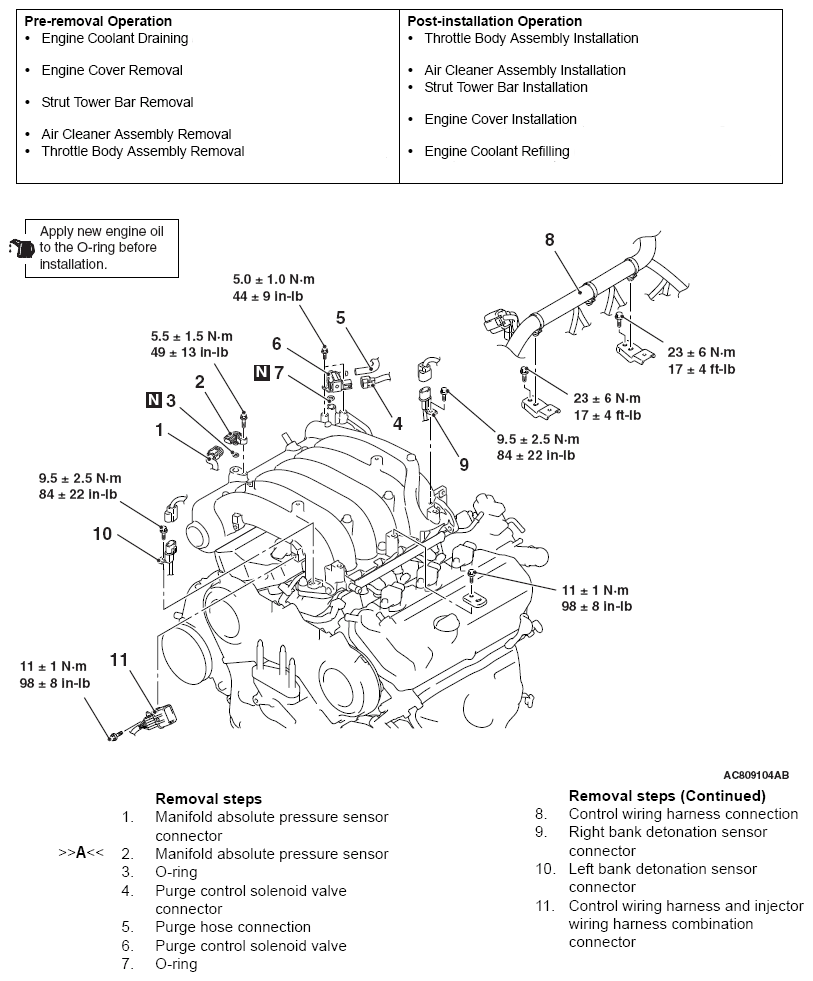

Fig 2: Intake Manifold Plenum Replacement Components With Torque Specifications - 3.0L Engine (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
