Disassembly And Assembly: Notes

CAUTION: Do not use ATF-SP II M and ATF-SP III for the power steering fluid.

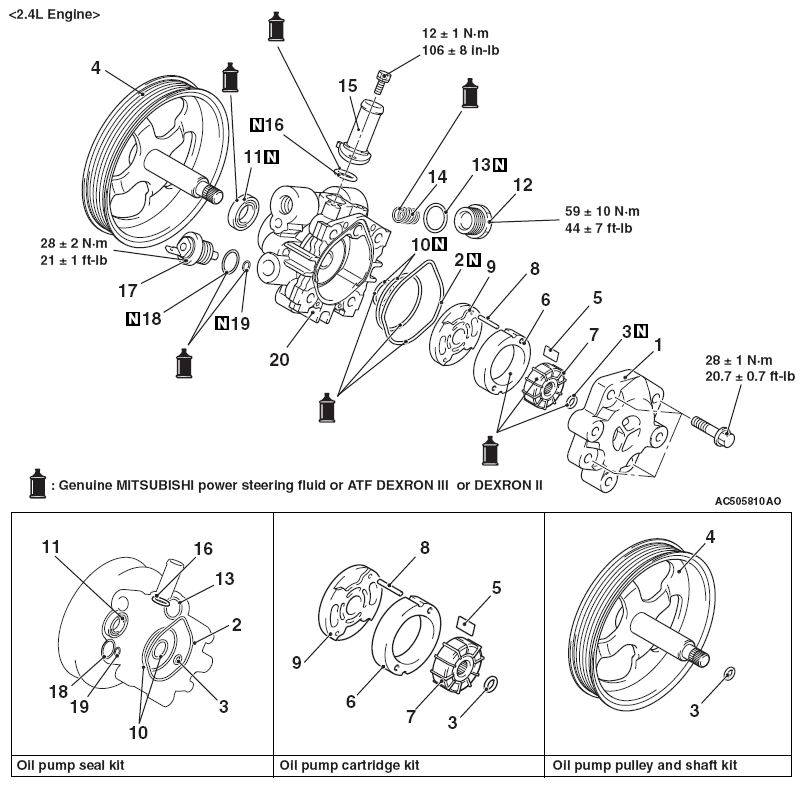

Fig 1: Exploded View Of Oil Pump Assembly With Torque Specifications - 2.4L
G06483069Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

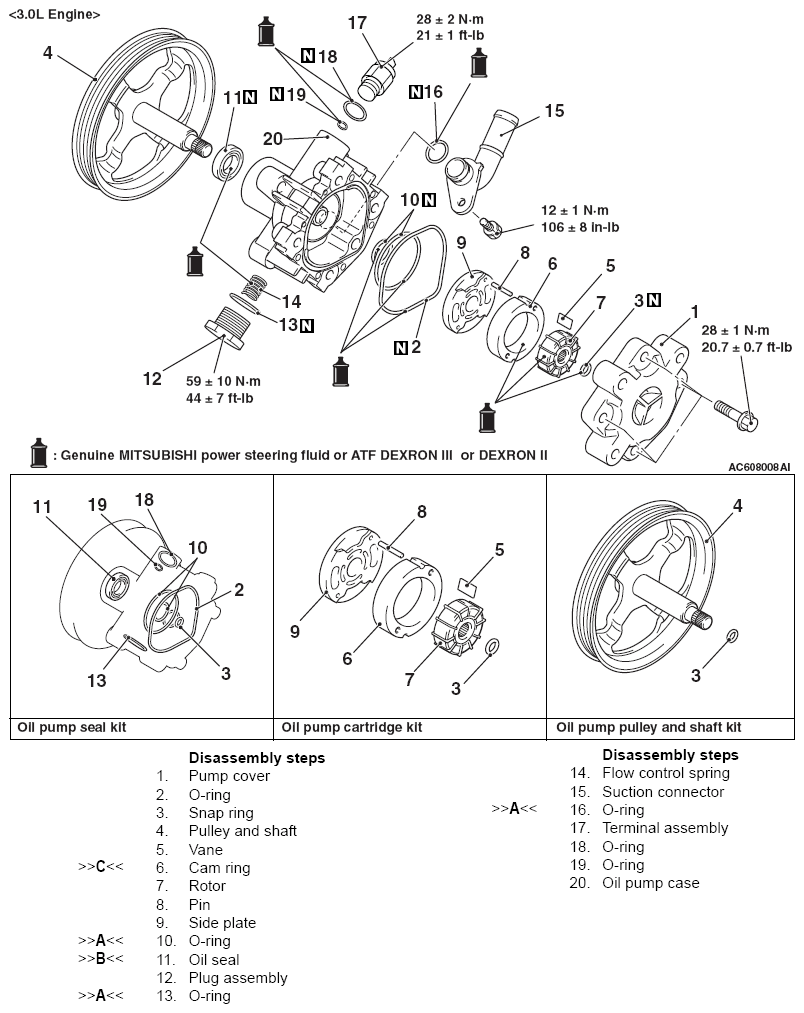

Fig 2: Exploded View Of Oil Pump Assembly With Torque Specifications - 3.0L
G06483070Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
