Removal And Installation: Notes

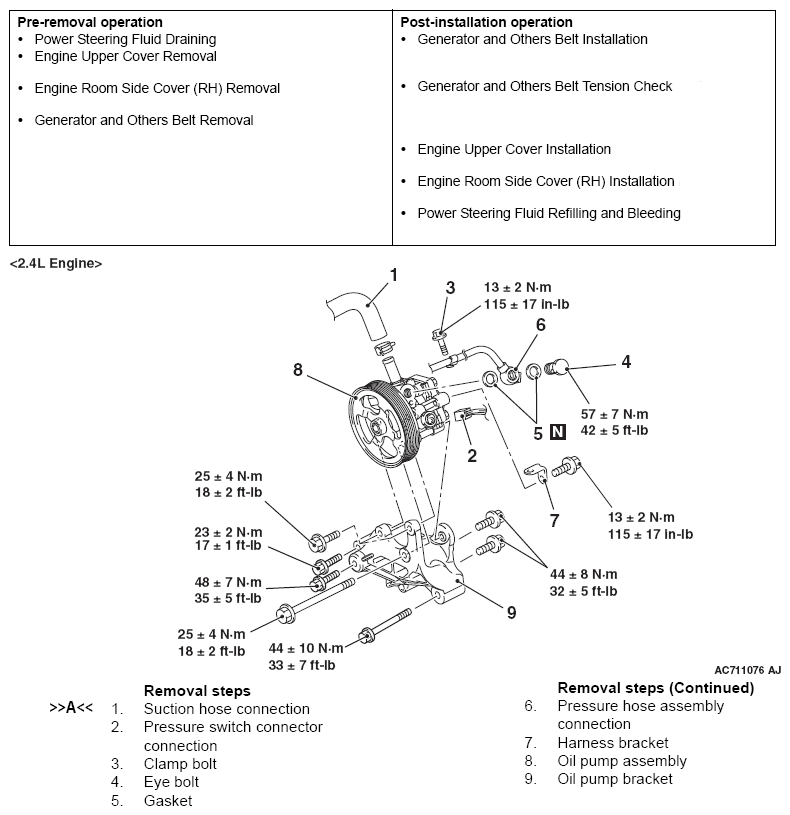

Fig 1: Exploded View Of Power Steering Oil Pump Assembly With Torque Specifications - 2.4L
G06483064Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

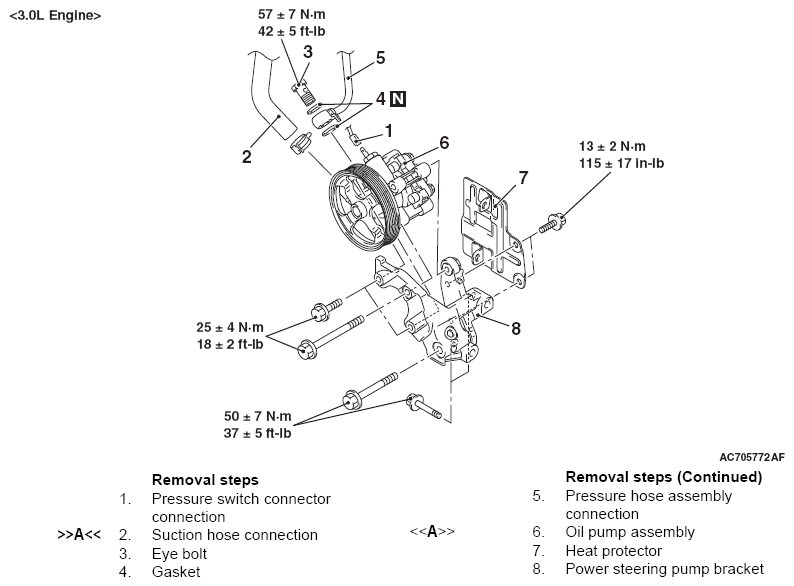

Fig 2: Exploded View Of Power Steering Oil Pump Assembly With Torque Specifications - 3.0L
G06483065Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
