Removal And Installation: Notes

CAUTION:

Before removing the steering wheel/driver's air bag module assembly, refer to SERVICE PRECAUTIONS and AIR BAG MODULES AND CLOCK SPRING .
After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point. (Refer to STEERING WHEEL SENSOR CALIBRATION ). < Vehicles with ASC >

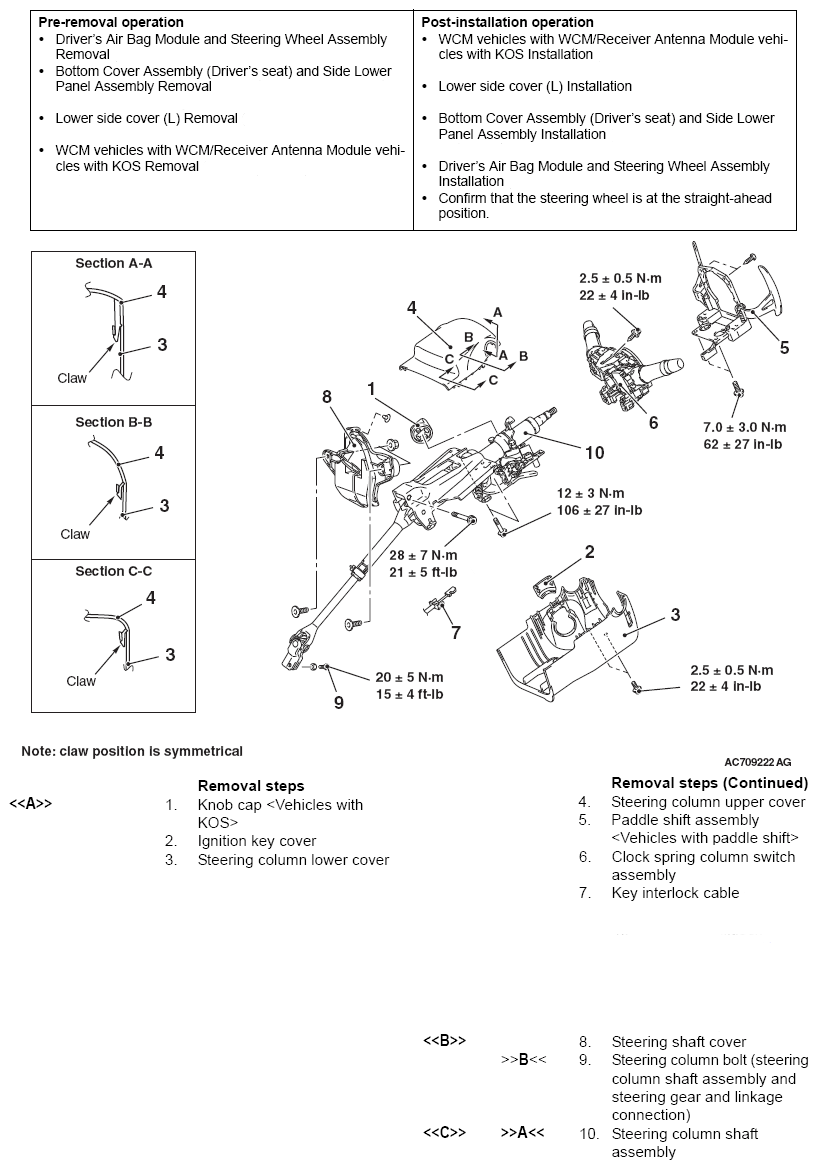

Fig 1: Disassembled View Of Steering Column Shaft With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
