Removal And Installation: Notes

WARNING:

Before removing the steering wheel and driver's air bag module assembly, refer to SERVICE PRECAUTIONS and AIR BAG MODULES AND CLOCK SPRING .
When removing and installing the steering wheel, do not let it bump against the driver's air bag module.

CAUTION: After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point. (Refer to STEERING WHEEL SENSOR CALIBRATION ). < Vehicles with ASC >

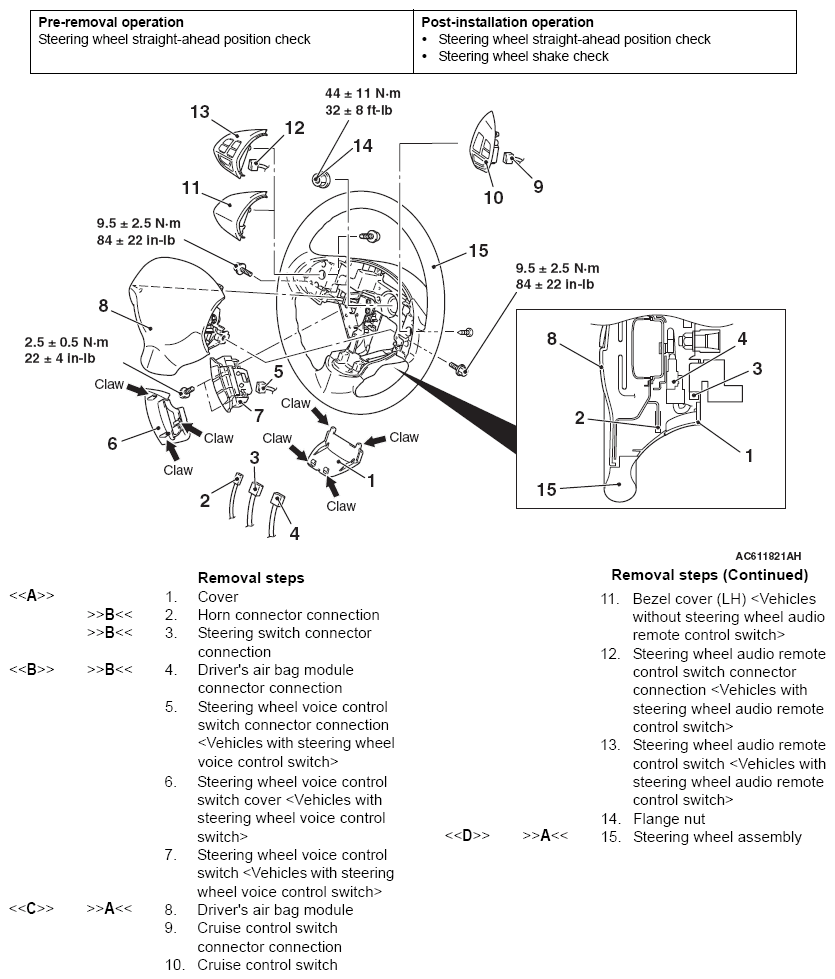

Fig 1: Exploded View Of Steering Wheel With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990784: Ornament Remover
MB990803: Steering wheel puller
