Inspection Procedure 1: Scan Tool MB991958 Cannot Communicate With the Electronic Control AWD System: Notes

WARNING: This page is about a different variant/trim than selected.

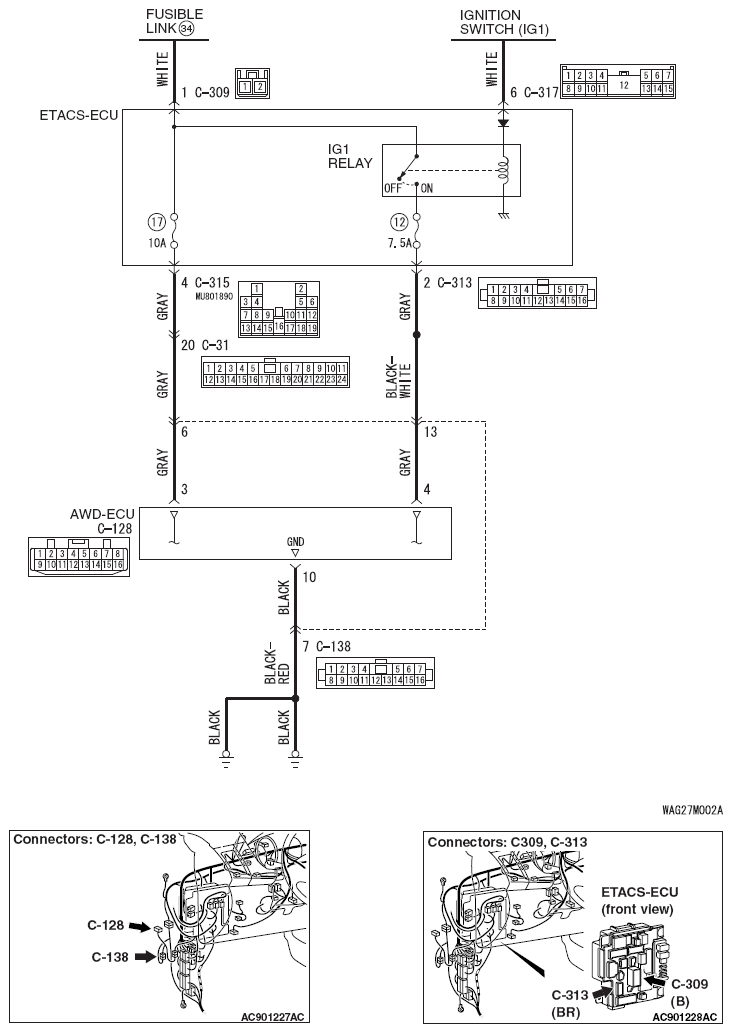

Fig 1: Electronic Control AWD System Circuit Diagram
G06482699Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
