<<A>> Shift Lock Cable Unit Removal

Remove the shift lock cable from the vehicle as follows.

1. Remove the shift lock cable unit from the brake pedal bracket.
2. Bind up the cap of shift lock cable unit with a string.
   CAUTION: Bind up it securely so that the string will not loosen.
3. Wind a plastic tape around the string bound to the shift lock cable unit.
4. To remove the shift lock cable unit pull it slowly and thread the string behind the heater unit.

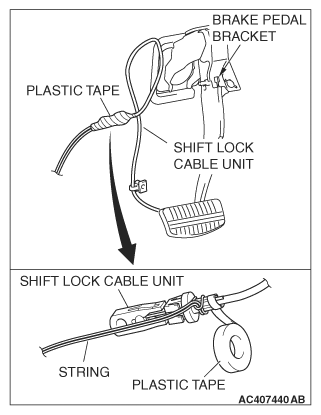

   Fig 1: Winding Plastic Tape Around String Bound To Shift Lock Cable Unit

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
