DTC P1766 (P0715): Input Shaft Speed Sensor System (Short Circuit/Open Circuit): Notes

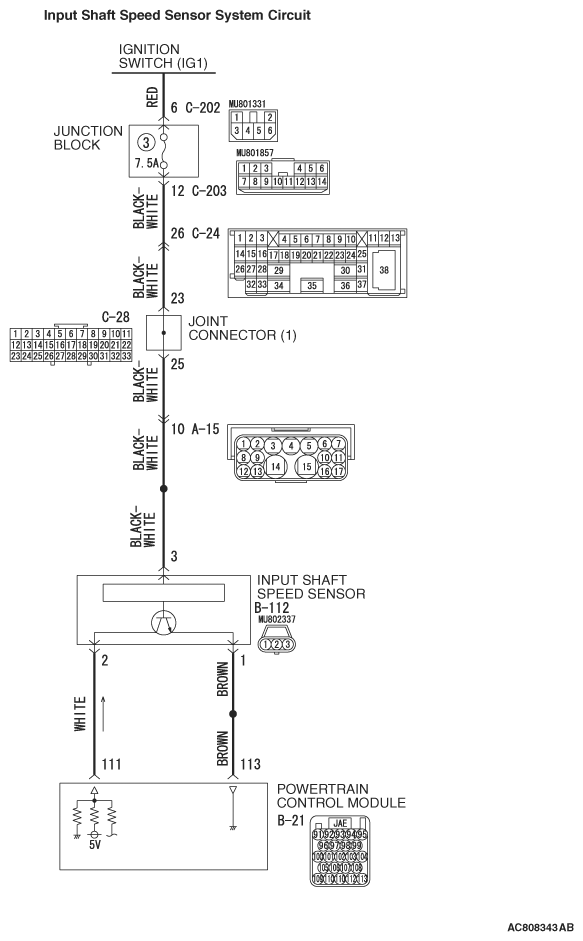

Fig 1: Input Shaft Speed Sensor System Circuit Diagram (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

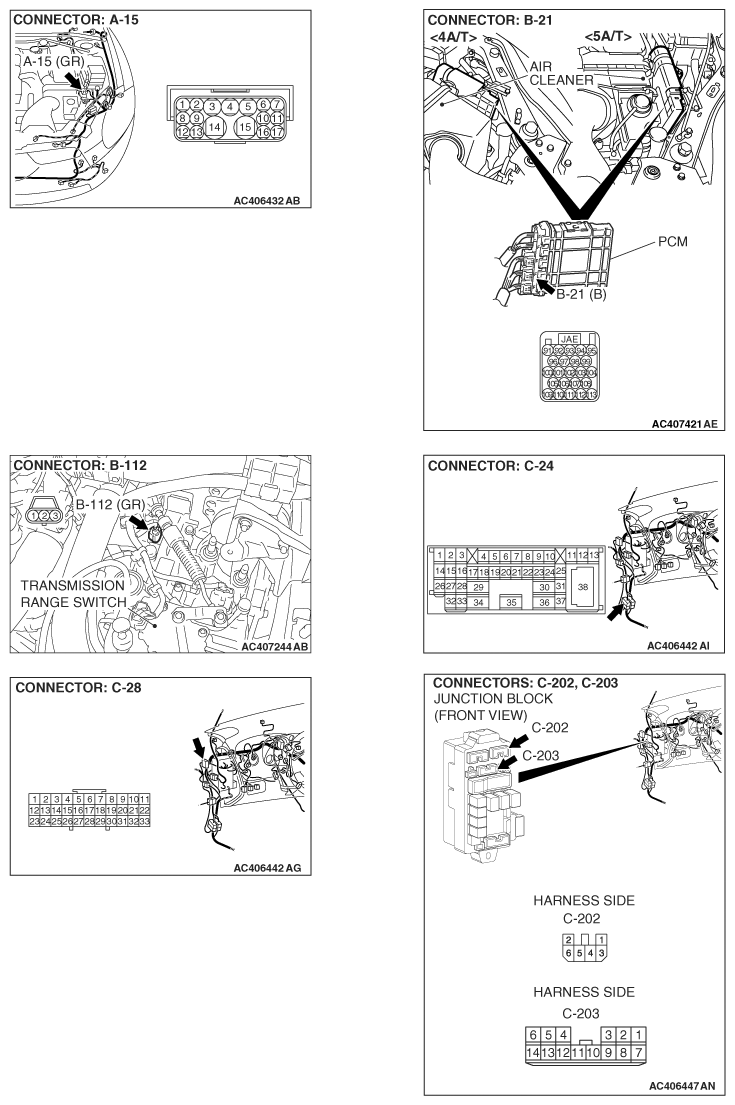

Fig 2: Input Shaft Speed Sensor System Circuit Diagram (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
