DTC P1769: Stoplight Switch System: Notes

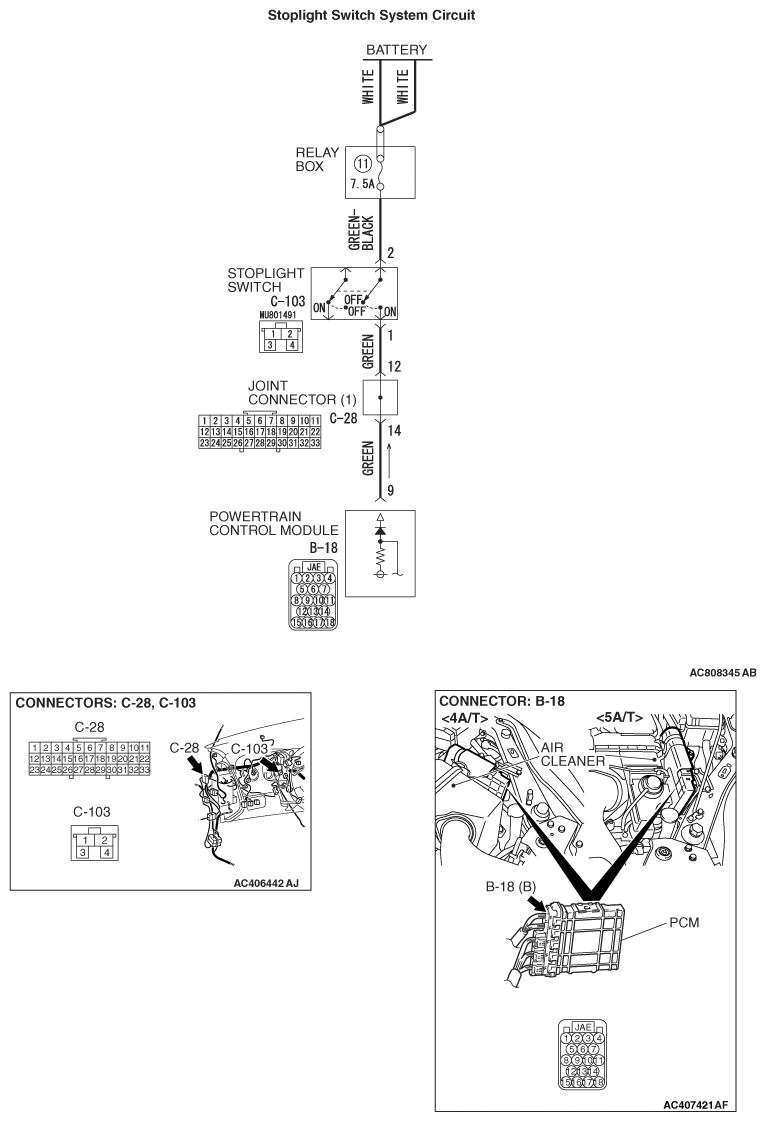

Fig 1: Stoplight Switch System Circuit Diagram
G06685113Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
