DTC P1788 (P1751): A/T Control Relay System: Notes

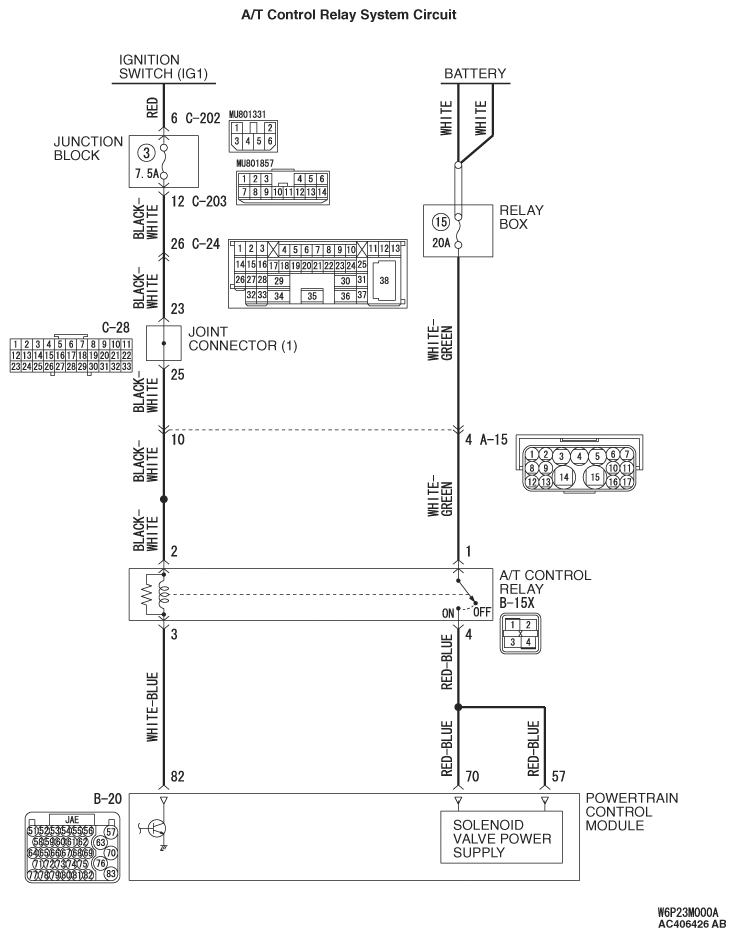

Fig 1: A/T Control Relay System Circuit Diagram (1 Of 2)
G06685384Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

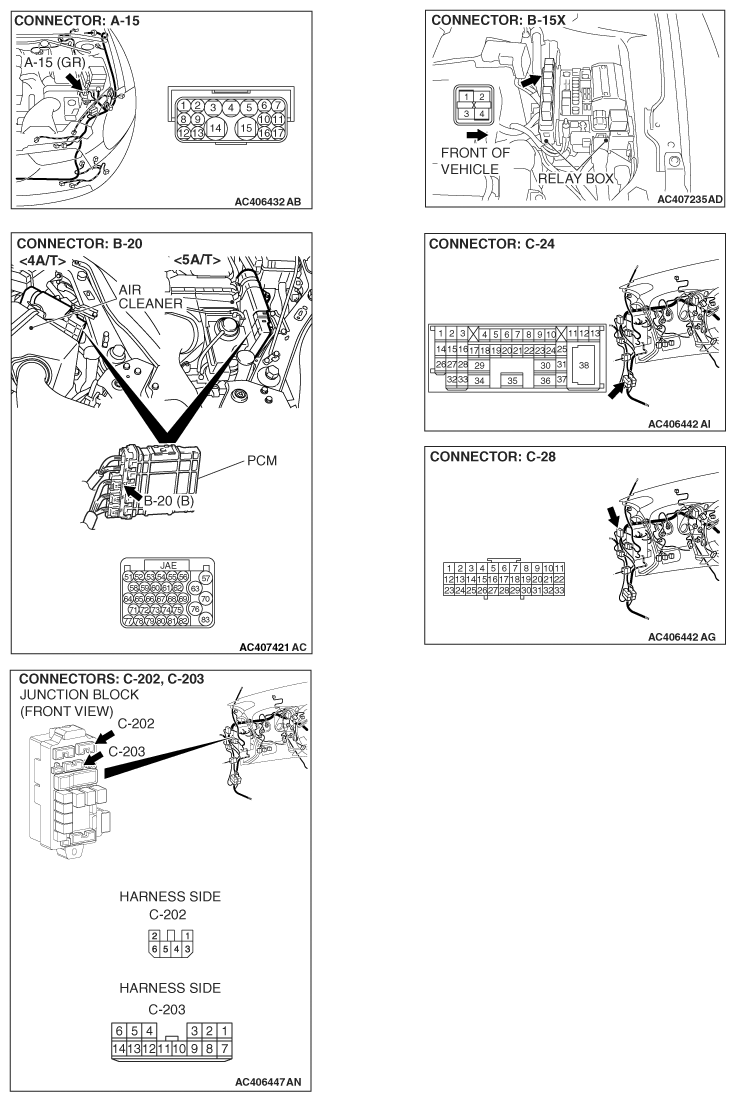

Fig 2: A/T Control Relay System Circuit Diagram (2 Of 2)
G06685385Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
