System Construction Diagram: Notes

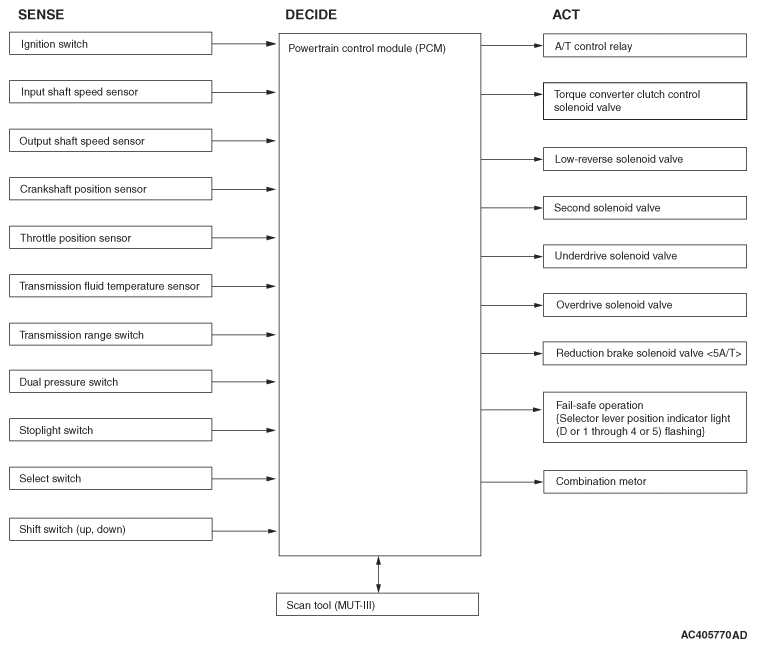

Fig 1: System Construction Diagram
G06684941Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
