Removal And Installation <5M/T>: Notes

CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

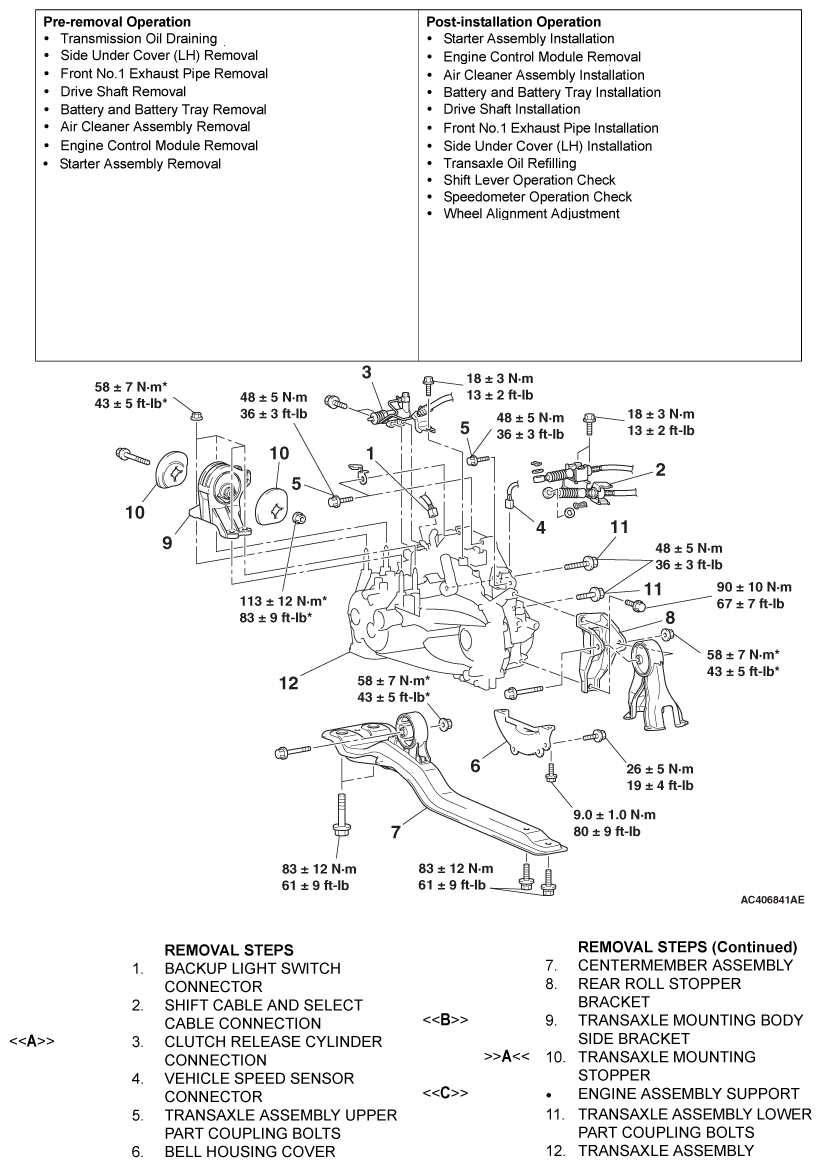

Fig 1: Exploded View Of Transaxle Assembly With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991454: Engine Hanger Balancer (chain)
MB991527: Hanger
MB991895: Engine Hanger
MB991928: Engine Hanger
Slide bracket (HI)
MB991931: Joint (140)
MB991932: Foot (standard)
