>>D<< Select Cable Connection (Shift Lever Side) Installation <6M/T>

1. Place the shift lever to the neutral position.
2. Move the lock clip of the select cable towards the arrowed direction in the figure, and pull the fixing clip.
3. Install the select cable to the select lever, taking care not to move the shift lever from the neutral position.
Fig 1: Installing Select Cable To Select Lever
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. Pulling the select cable slightly towards the cabin side, press in the fixing clip of the select cable. Then, return the lock clip back to the original state.
5. Move the shift lever to all shift positions.

NOTE: If the shift lever cannot be moved to each position or is difficult to move, repeat from step 1 to step 5.

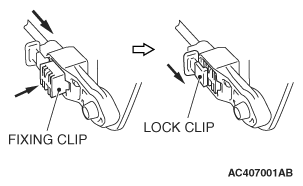

Fig 2: Pressing Fixing Clip Of Select Cable

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
