DTC P1773 (P0753): Low-Reverse Solenoid Valve: Notes
WARNING:
This page is about a different variant/trim than selected.

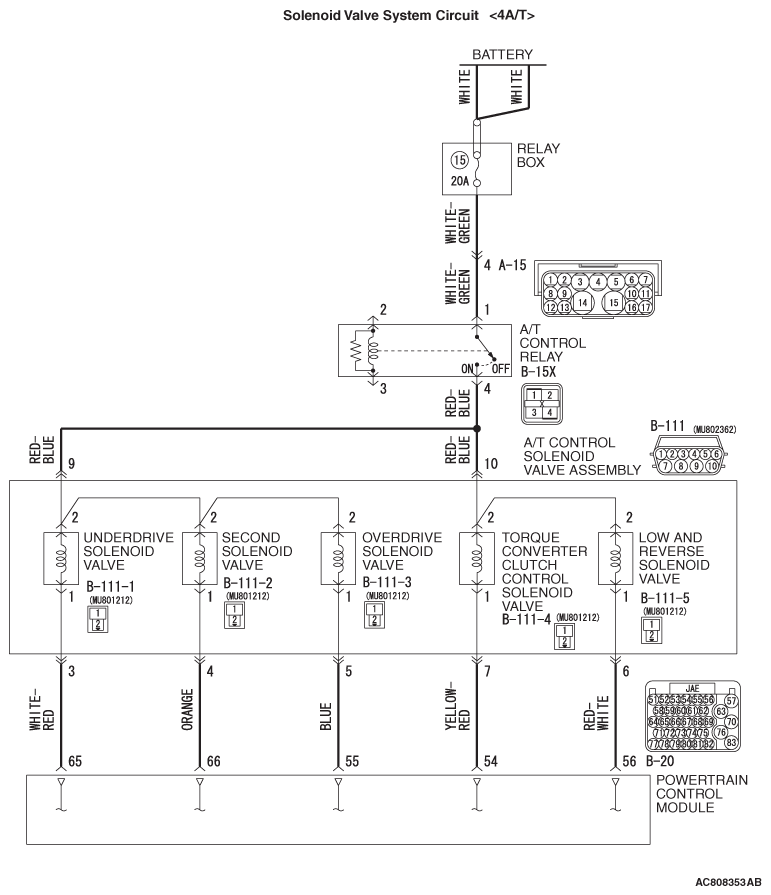

Fig 1: Solenoid Valve System Circuit Diagram (4A/T)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

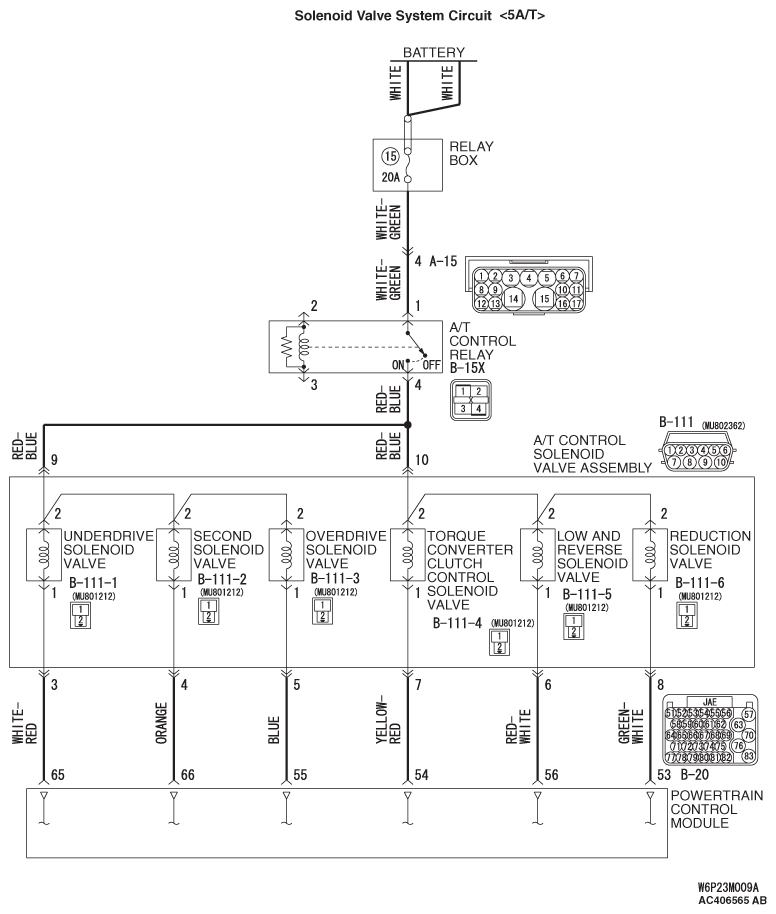

Fig 2: Solenoid Valve System Circuit Diagram (5A/T)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

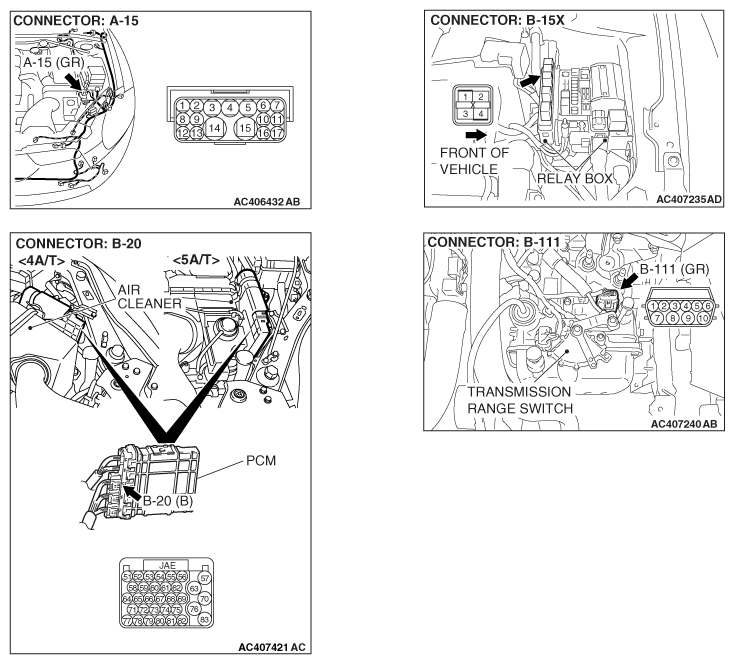

Fig 3: Solenoid Valve System Circuit Connectors
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
