>>D<< Drive Shaft Nut Installation

WARNING: This page is about a different variant/trim than selected.
  1. Be sure to install the drive shaft washer in the specified direction.
    CAUTION: Before securely tightening the drive shaft nuts, make sure there is no load on the wheel bearings. Otherwise the wheel bearing will be damaged.

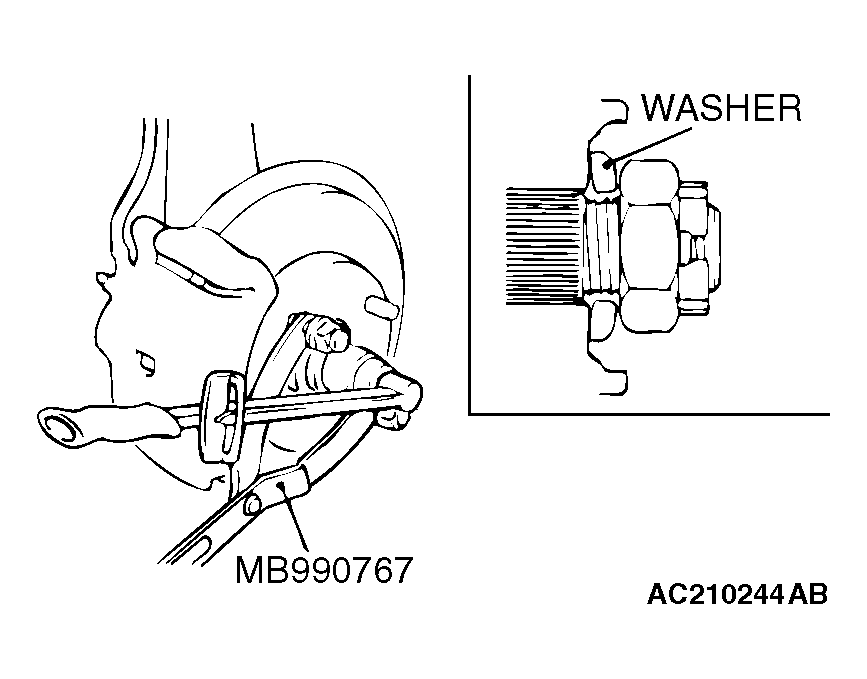

    Fig 1: Tightening Drive Shaft Nut
    G04231236Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Using special tool MB990767, tighten the drive shaft nut to the specified torque.

    Tightening torque: 226 ± 29 N.m (167 ± 21 ft-lb)



  1. Be sure to install the drive shaft washer in the specified direction.
    CAUTION: Before securely tightening the drive shaft nuts, make sure there is no load on the wheel bearings. Otherwise the wheel bearing will be damaged.
    Fig 1: Tightening Drive Shaft Nut
    G04231236Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Using special tool MB990767, tighten the drive shaft nut to the specified torque.

    Tightening torque: 226 ± 29 N.m (167 ± 21 ft-lb)
