DTC B1012: Ambient Air Temperature Sensor System (Open Circuit): Notes

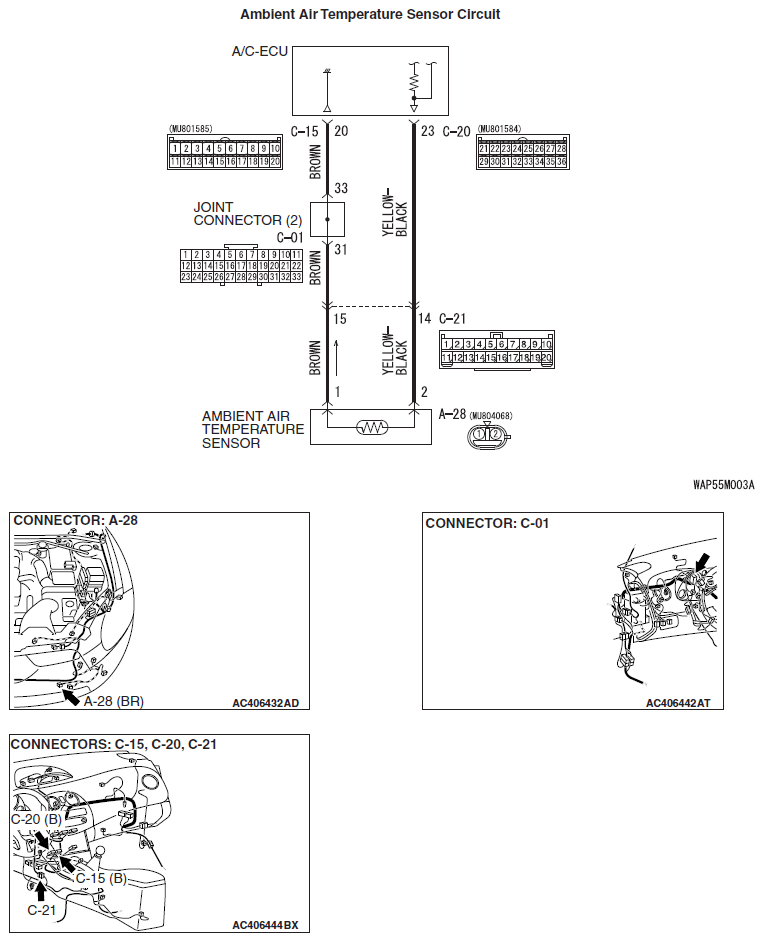

Fig 1: Ambient Air Temperature Sensor Circuit
G06693154Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
