INSPECTION PROCEDURE 9: Rear Window Defogger Function does not Operate: Notes

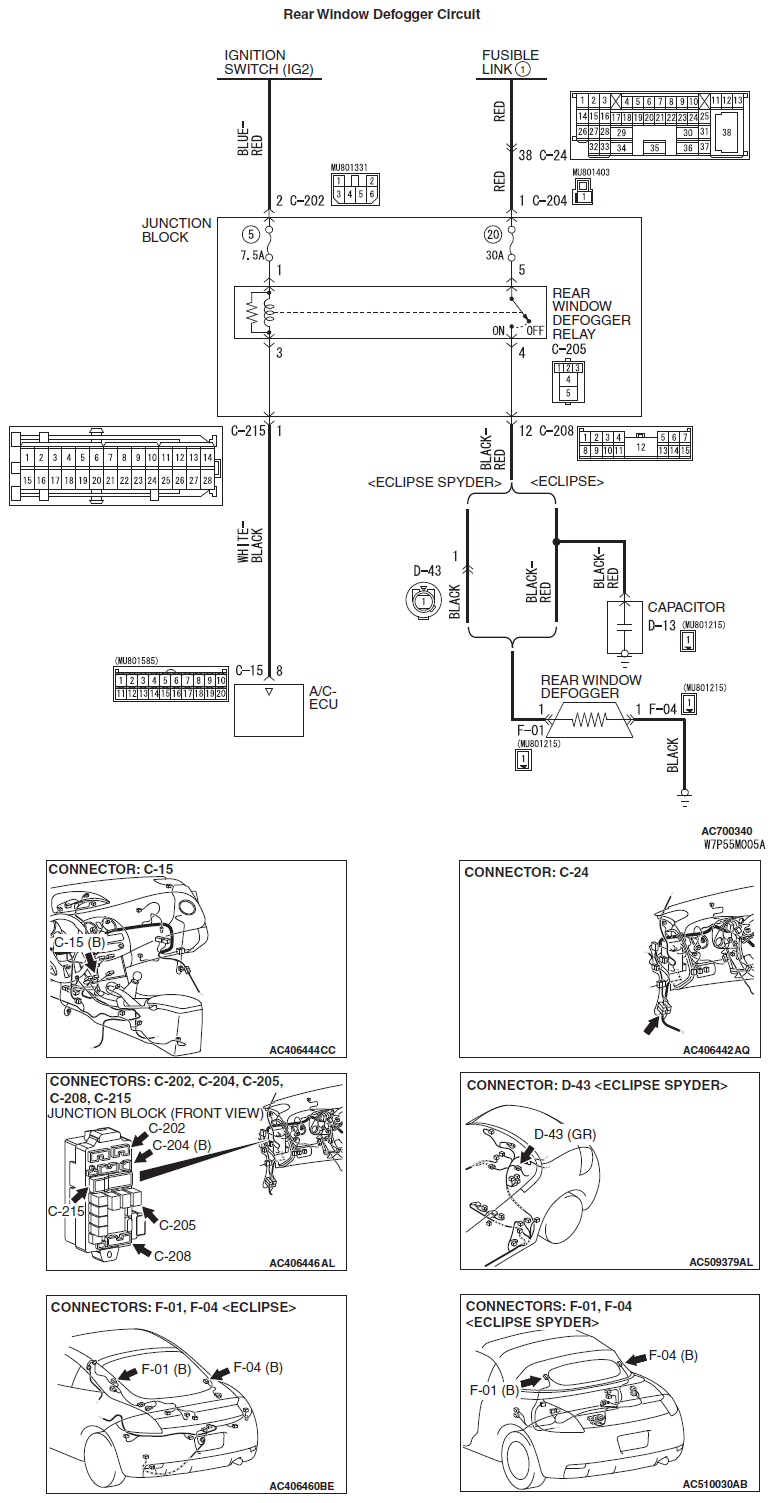

Fig 1: Rear Window Defogger Circuit
G06693449Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
