>>C<< Intermediate Plate/Cushion Plate/Clutch Plate/Clutch Disc/Clutch Reaction Plate Installation

CAUTION: Immerse the clutch disc in ATF before assembling it. If the clutch disc is new, soak it in ATF for at least two hours.

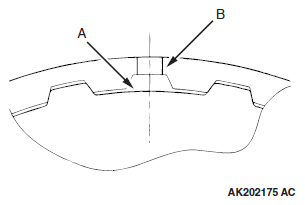

1. Assemble the intermediate plate, cushion plate, clutch plates, clutch discs, and clutch reaction plates with their non-toothed portions (A in the illustration) aligned with the hole (B in the illustration) formed in a crest of the direct clutch retainer.
   Fig 1: Aligning Hole Of Direct Clutch Retainer

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Orient the clutch reaction plate and intermediate plate as shown in the illustration when it is installed.

Fig 2: Orienting Clutch Reaction Plate And Intermediate Plate

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
