Removal And Installation

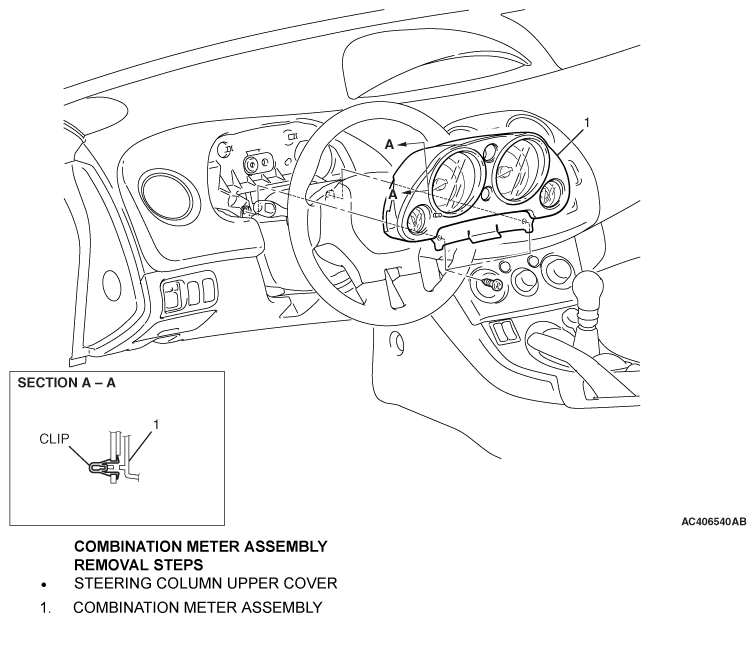

Fig 1: Removal/Installation Of Combination Meter Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
