Transmission Range Switch Check

TRANSMISSION RANGE SWITCH REFERENCE

TRANSMISSION RANGE	TERMINAL CONNECTION OF TESTER	SPECIFIED CONDITION
P	3 - 8, 9 - 10	Less than 2 ohms.
R	7 - 8
N	4 - 8, 9 - 10
D	1 - 8

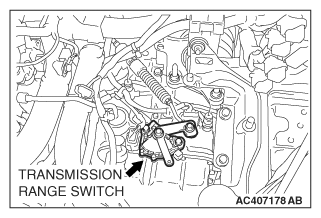

Fig 1: Locating Transmission Range Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

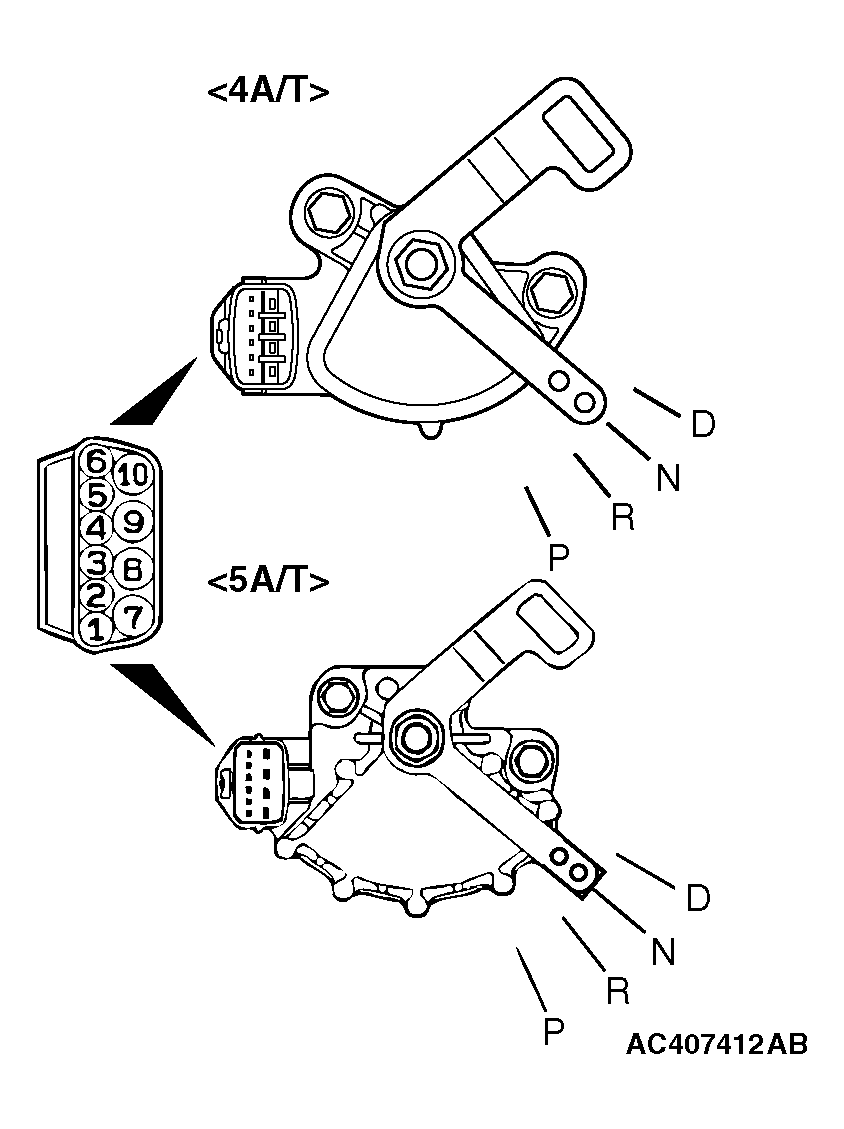

Fig 2: Transmission Range Switch Position

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Refer to TRANSMISSION RANGE SWITCH CHECK .
