Removal And Installation: <4A/T>

CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

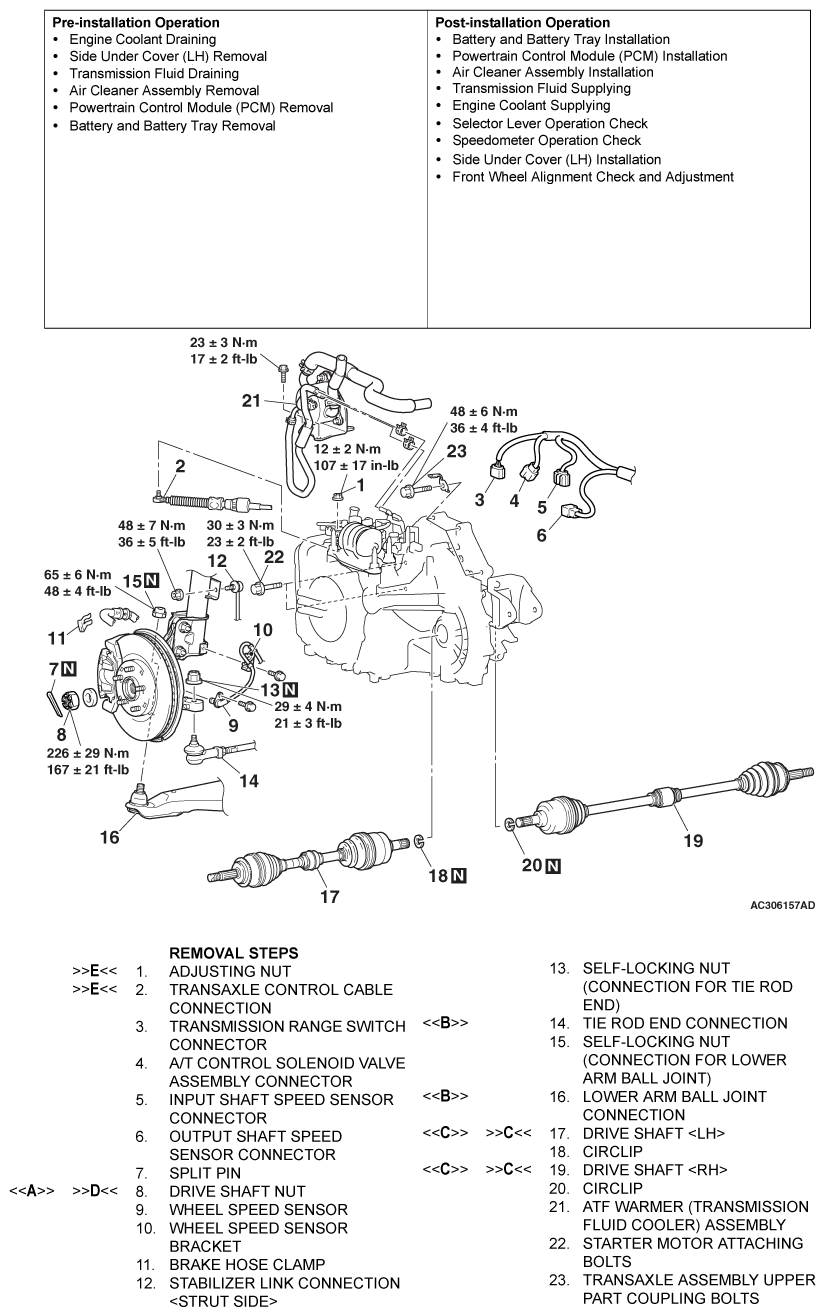

Fig 1: Removal/Installation Of Transaxle Assembly <4A/T> With Torque Specifications (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

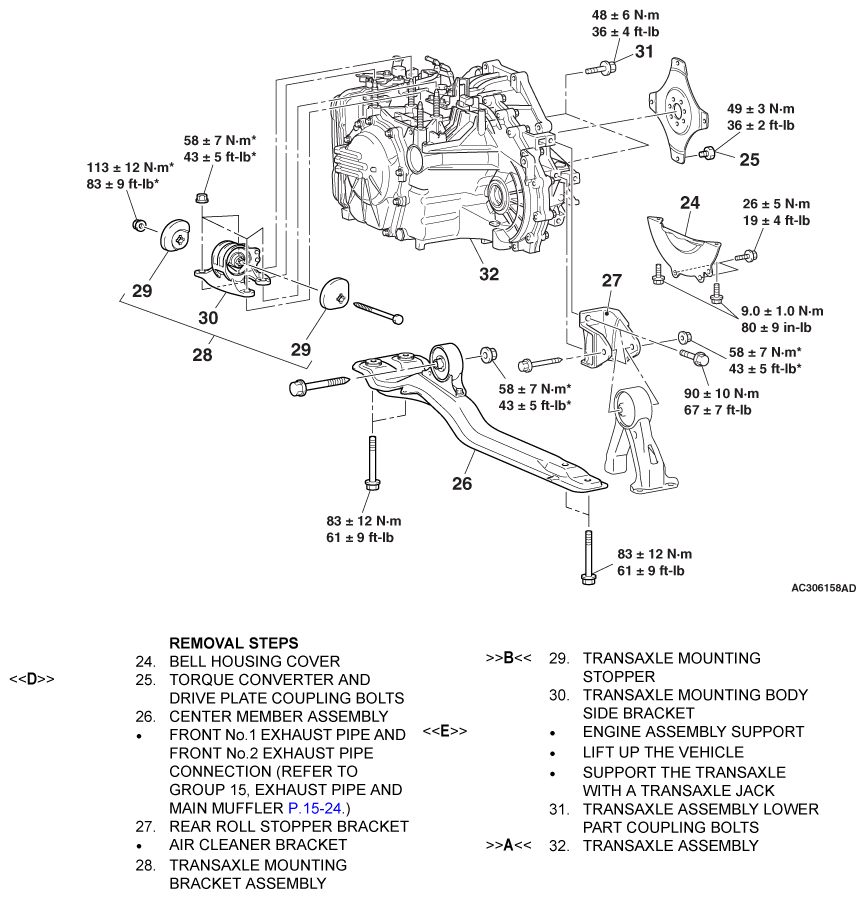

Fig 2: Removal/Installation Of Transaxle Assembly <4A/T> With Torque Specifications (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990242: Puller Shaft Puller
MB990244: Puller Bar
MB990767: End Yoke Holder
MB990998: Front Hub Remover and Installer
MB991000: Spacer
MB991354: Puller Body
MB991454: Engine Hanger Balancer (chain)
MB991527: Hanger
MB991928: Engine Hanger
MB991930: Joint (90)
MB991932: Foot (standard)
MB991933: Foot (short)
MB991934: Chain and Hook Assembly
MB991895: Engine Hanger
MB991897: Ball Joint Remover
