Data List Reference Table

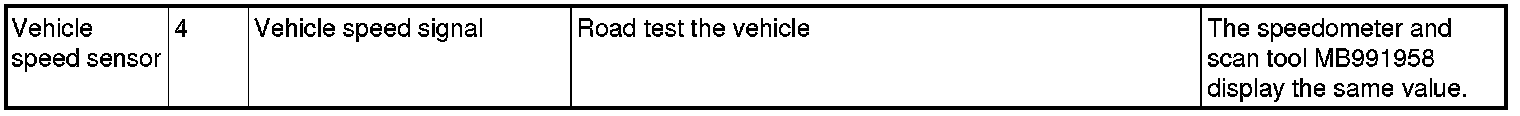

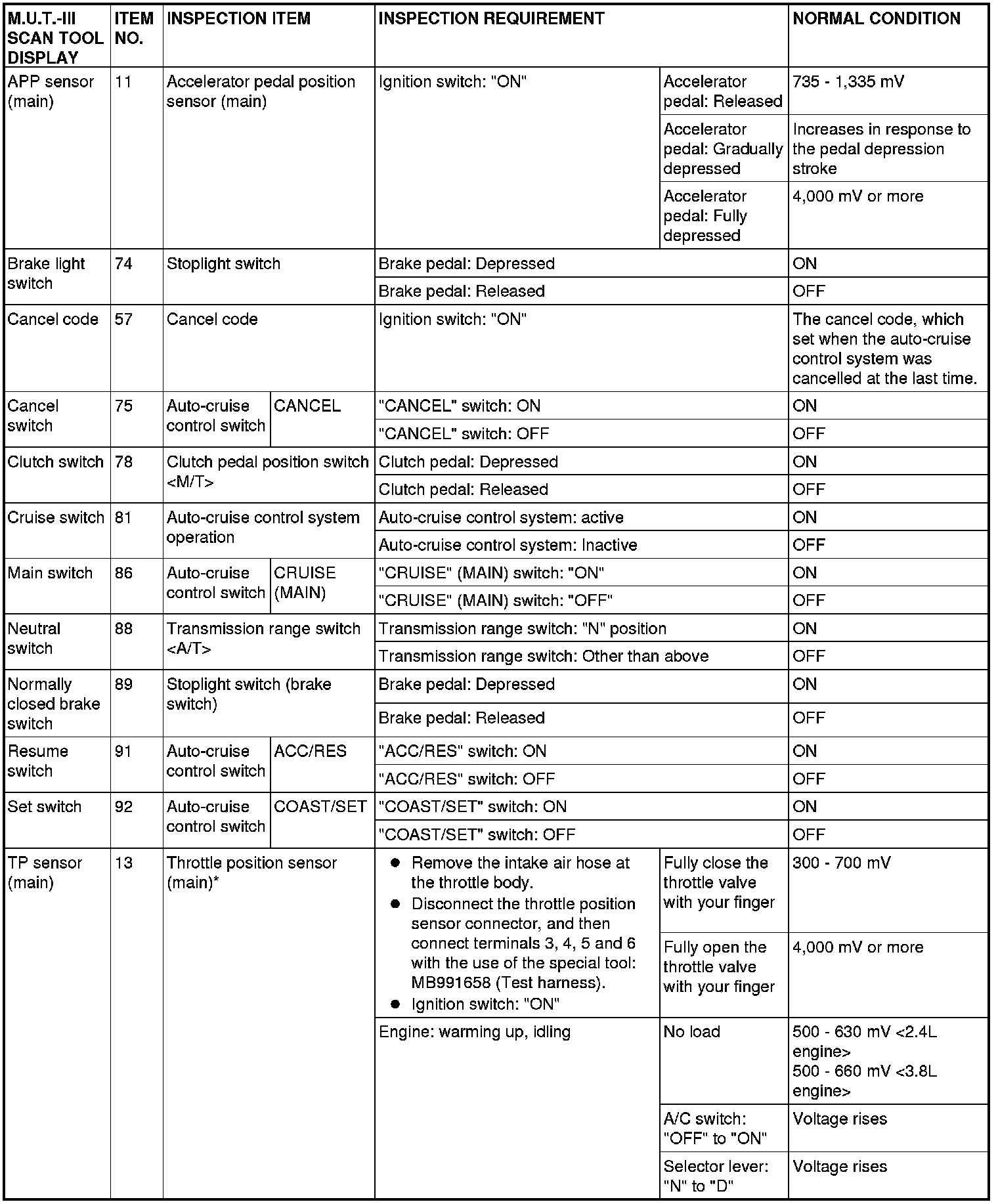

DATA LIST REFERENCE TABLE

CAUTION:

- Driving tests always need two persons: one driver and one observer.
- When shifting the selector lever to "D" range apply the brakes should be applied so that the vehicle does not move forward [A/T].

NOTE:
*:After the inspection is completed, disconnect the throttle position sensor connector, and then delete the diagnostic trouble code using scan tool MB991958. (Refer to Reading and Clearing Diagnostic Trouble Codes).
