Actuator Test Reference Table

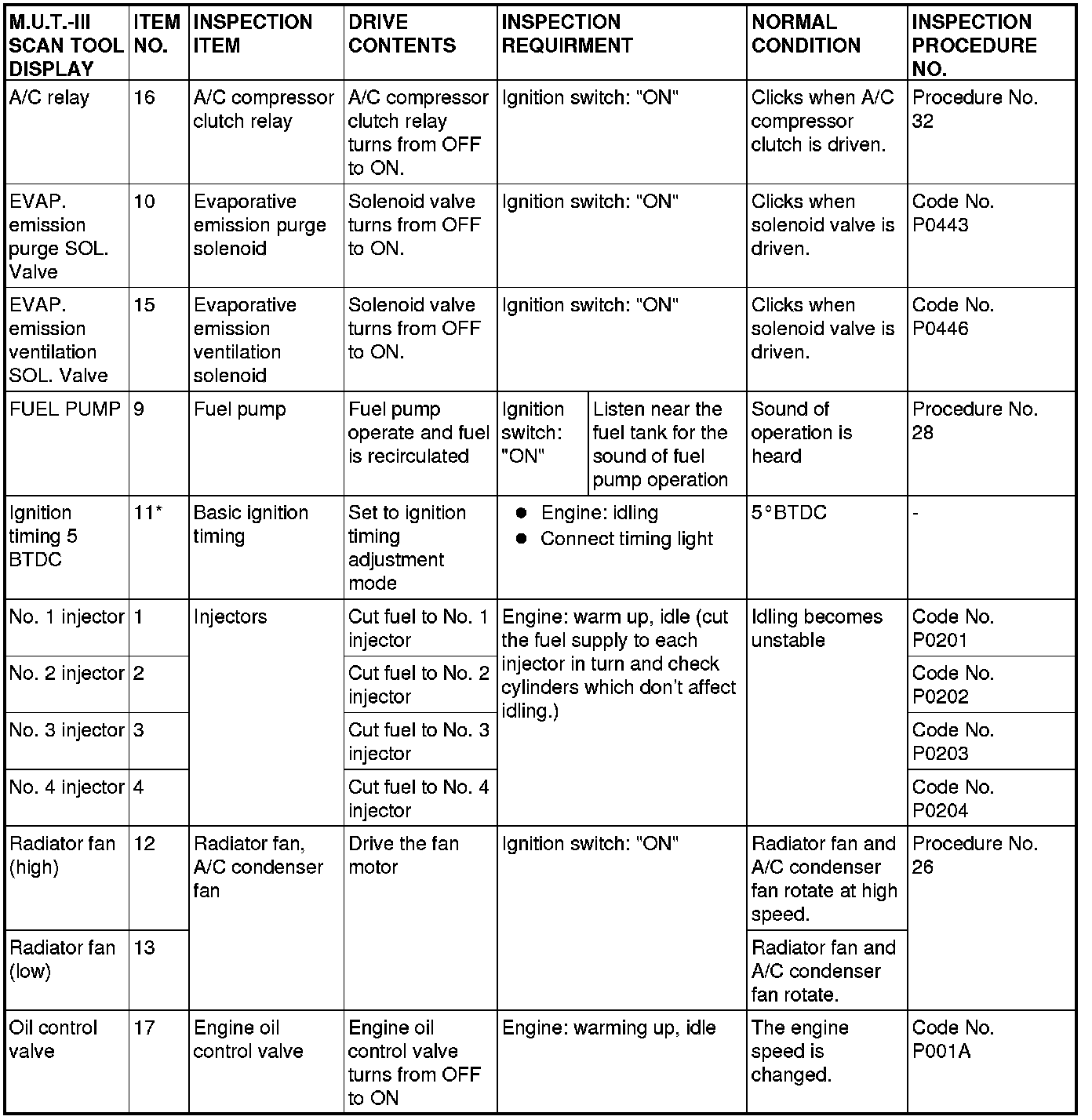

ACTUATOR TEST REFERENCE TABLE

NOTE:
*: Continues for 27 minutes. Can be released by pressing the CLEAR key.
