Removal And Installation: Notes

CAUTION:
  • Do not strike the ABS rotors installed to the BJ outer race of driveshaft against other parts when removing or installing the driveshaft. Otherwise the ABS rotors will be damaged.
  • Be careful not to strike the pole piece at the tip of the front ABS sensor with tools during servicing work.

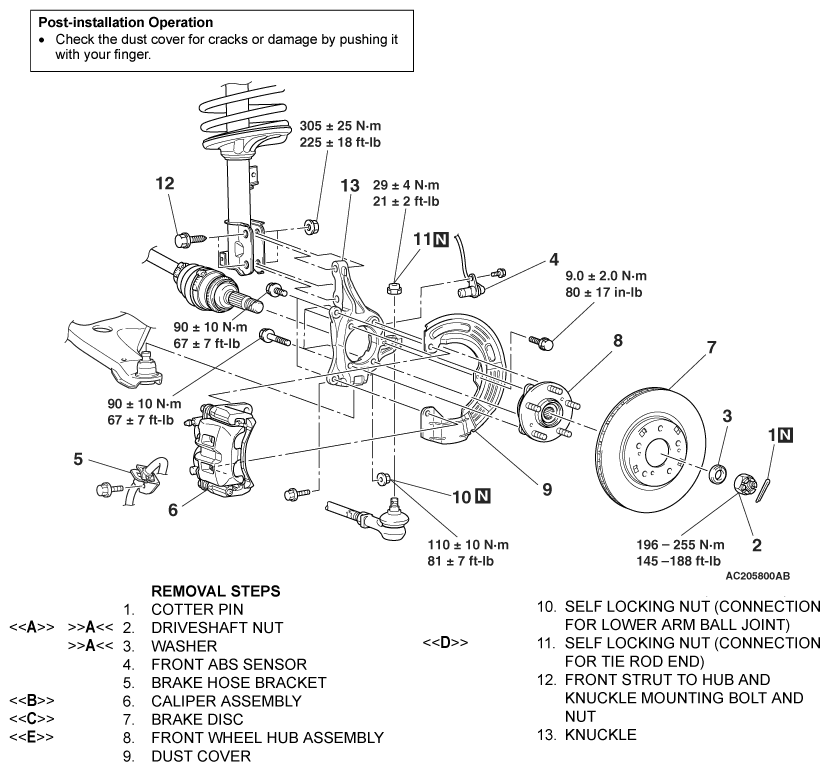

    Fig 1: Front Axle Hub Components With Torque Specifications
    G06699701Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
